Details for Poly Storage Tanks- 60″ Diameter

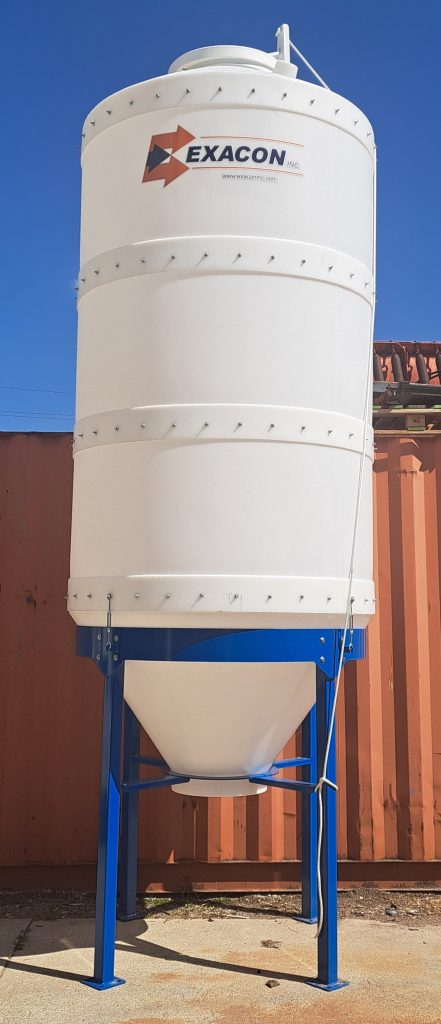

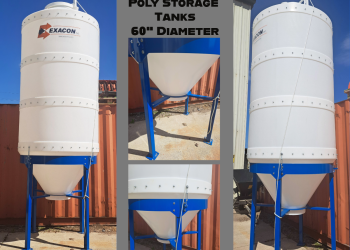

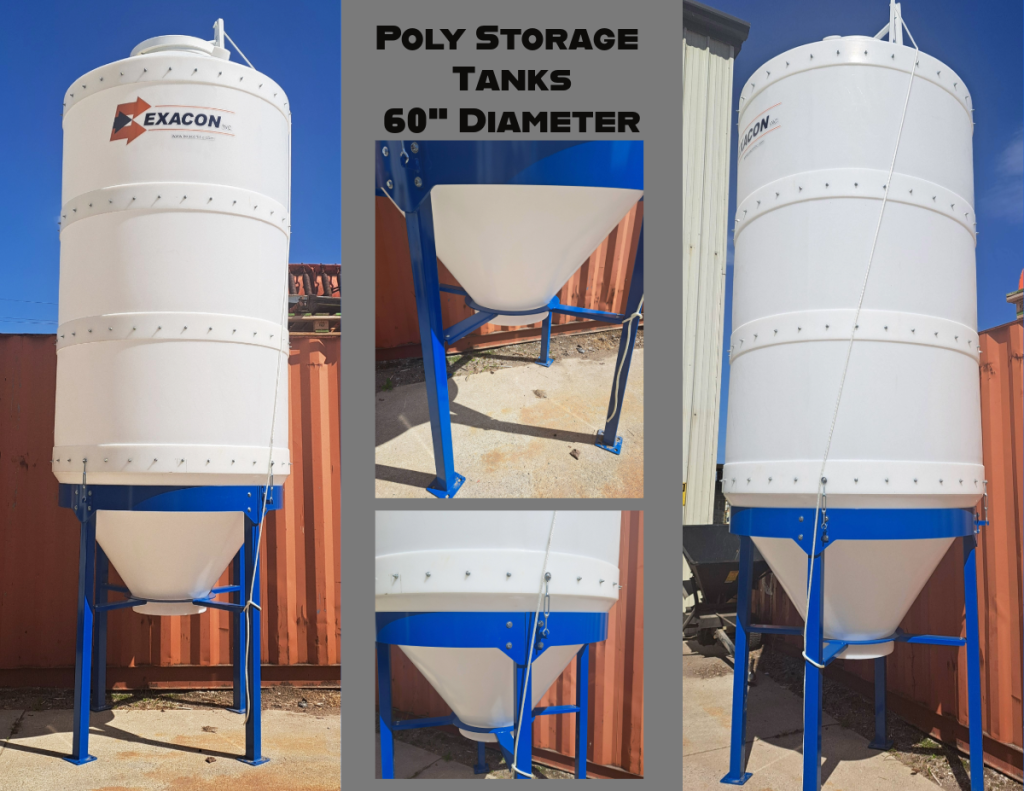

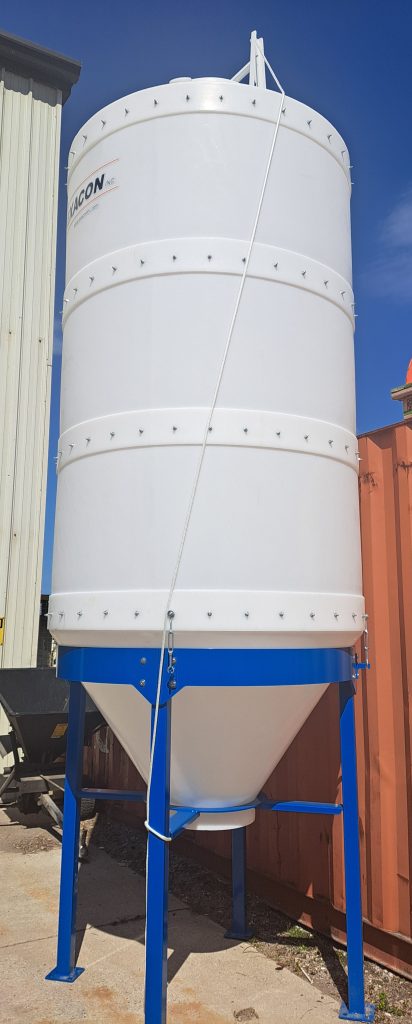

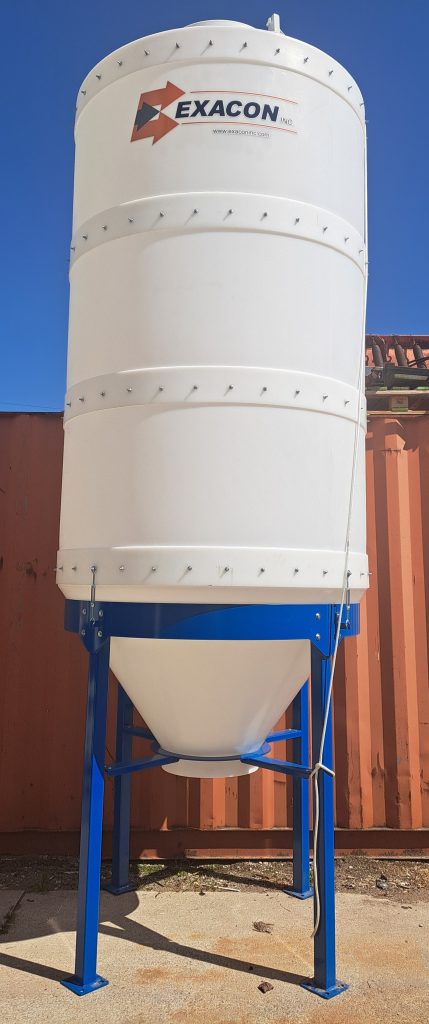

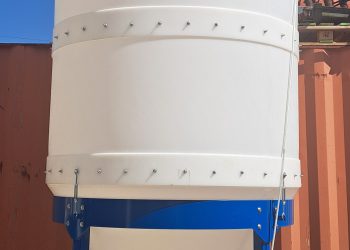

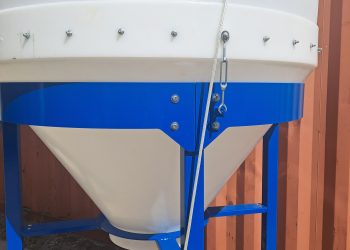

Poly Storage Tanks – 60″ Diameter

  • Clean, smooth-wall design for even feed flow
  • Transparent tank allows for visible feed level
  • Durable and easy to clean
  • No rust, corrosion resistant for long life
  • Minimal sweating on interior of tank
  • 20″ spring loaded lid and rope included with both 80 cf and 200 cf models
  • Ideal to store premixes and micronutrient supplements

CEMENT PAD REQUIREMENTS FOR PC80/PC200 IS 72″ SQUARE, 6″ THICK, 10MM REBAR AT 12″ CENTERS

Specifications

PART # MODEL # CU.FT. BUSHEL APPROX. TONNAGE 40 LBS/CUFT TONNAGE 70 LBS/CUFT BIN HEIGHT BIN WEIGHT
E75-5501B BTPS501 88 71 1.6 2.8 10′-0″ 340 LBS
E75-5502B BTPS502 138 112 2.5 4.4 12′-8″ 400 LBS
E75-5503B BTPS503 188 152 3.4 NOT RATED FOR 70 LBS 15′-4″ 460 LBS

Optional Accessories

PART # DESCRIPTION
E75-5001 BLACK ‘STRAIGHT’ AUGER BOOT
E75-5002 BLACK ’30 DEGREE’ AUGER BOOT
E75-5003 CLEAR ‘STRAIGHT’ AUGER BOOT
E75-5004 CLEAR ’30 DEGREE’ AUGER BOOT
E75-5005 AUGER BOOT SLIDE KIT
E75-5006 POLY SLIDE GATE
E75-5007 FILL KIT FOR PC80
E75-5008 FILL KIT FOR PC200
E75-5009 12″ LEG EXTENSION (SET OF 4)
E75-5010 24″ LEG EXTENSION (SET OF 4)
E75-5011 REPLACEMENT 20″ LID
E75-5012 B.T. 22″ LID (FOR STEEL BINS)
