Details for Multifan V-Flo Fan

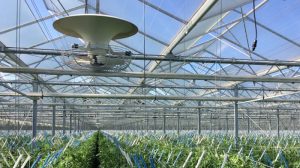

In modern greenhouses, ventilation plays a vital role. Through recirculation of air, heat distribution in the greenhouses is optimized, which enhances a uniform development of the crops, independent of the location.

Because of several energy technical improvements in modern greenhouses and more intensive cultivation methods, the necessity of controlling humidity levels on crop level increases.

The V-FloFan offers the grower the opportunity to reduce the negative impacts, due to humidity, in a simple and energy efficient way. The vertical and horizontal airflows result in an active microclimate on crop level.

  • Reduced heating costs
  • Less turbulent airflow
  • Lower humidity and condensation
  • Uniform air distribution throughout the structure
  • Greenhouse, industrial and agricultural applications

Specifications

PART # DIA. VOLT PHS AMPS RPM dB CFM
E54-4134Q6 16″ (6 POLE / 8FIN) 120 1 2 1140 47 3060
E54-4234Q6 16″ (6 POLE / 8 FIN) 240 1 0.9 1130 47 2970
E54-4234Q6-3 16″ (6 POLE / 8 FIN) 208-480 3 0.9-0.5 1140 47 3120
E50-0342 16″ V-FLO OPTIONAL MTG SUPPORT
