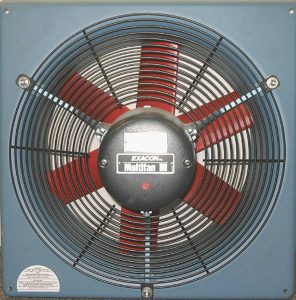

Details for Multifan Exhaust Fans – ‘Q’ (Direct Drive)

Note:

  • 3 year motor warranty
  • 120 / 240 volt fans may be operated one speed or variable speed
  • 36″ fans are variable down to 120 volt only
  • 10″ fans are not available in “Q” style

* 3 Phase available

Specifications

DIA. MODEL PART # VOLT C.F.M. @ 0.10″ S.P. BLADE R.P.M. AMP. DRAW R.S.O. (USING MFS SHUTTERS)
*10″ 4E25 E50-0201 240 760 1600 0.4 13″ SQ.
*10″ 4E25 E50-0101 120 760 1600 0.9 13″ SQ.
NOTE: 10″ FANS HAVE ALUMINUM FRAMES (LIMITED QUANTITIES AVAILABLE)
*12″ 2E30Q E50-0217Q 240 2040 3200 1.5 14″ SQ.
*NOT ELECTRONICALLY CONTROLLABLE (ON/OFF ONLY)
12″ 4E30Q E50-0202Q 240 1340 1600 0.6 14″ SQ.
14″ 4E35Q E50-0203Q 240 2020 1600 0.9 15 3/4″ SQ.
16″ 4E40Q E50-0204Q 240 2780 1600 1.1 17 3/4″ SQ.
18″ 4E45Q E50-0205Q 240 3540 1600 1.4 19 3/4″ SQ.
20″ 4E50Q E50-0206Q 240 4540 1600 1.8 21 3/4″ SQ.
24″ 6E63Q E50-0208Q 240 6710 1000 2.9 27 1/2″ SQ.
24″ 6E63QIE2 E50-0222Q 240 5330 1110 1.9 27 1/2″ SQ.
36″ 8E92Q E50-0209Q 240 9,800 800 3.6 37 1/2″ SQ.

12″ 4E30Q E50-0102Q 120 1340 1600 1.1 14″ SQ.
14″ 4E35Q E50-0103Q 120 2020 1600 1.8 15 3/4″ SQ.
16″ 4E40Q E50-0104Q 120 2780 1600 2.3 17 3/4″ SQ.
18″ 4E45Q E50-0105Q 120 3540 1600 3.0 19 3/4″ SQ.
20″ 4E50Q E50-0106Q 120 4540 1600 3.3 21 3/4″ SQ.
24″ 6E63Q E50-0108Q 120 6710 1000 6.7 27 1/2″ SQ.



MFS Multifan Shutters

DIA. MODEL PART # FRAME SIZE
10″ MFS10 E52-6071 11.875″ SQ.
12″ MFS12 E52-6072 13.25″ SQ.
14″ MFS14 E52-6073 15.25″ SQ.
16″ MFS16 E52-6074 17.25″ SQ.
18″ MFS18 E52-6075 19.25″ SQ.
20″ MFS20 E52-6076 21.25″ SQ.
24″ MFS24 E52-6078 27.00″ SQ.
36″ MFS36 E52-6079 37.00″ SQ.
