Details for Avi35 Hybrid Heat Recovery Unit by Avi-Air

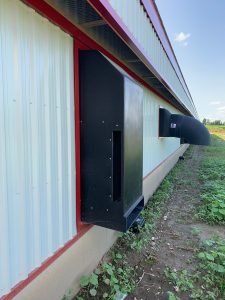

Avi35 Hybrid Heat Recovery Unit by Avi-Air

Characteristics

  • Recovery Mode air flow is 1500 CFM
  • 35 square meters of heat exchange surface (377 sq.ft.)
  • Up to five washing cycles
  • Intelligent de-icing cycles
  • Insulated polypropylene housing and door
  • Easy wall mount installation

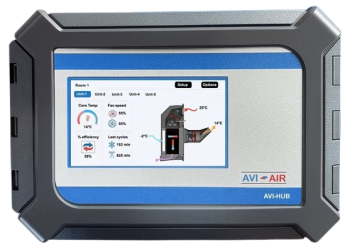

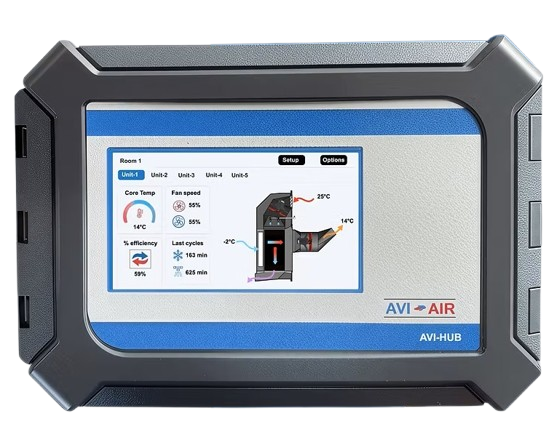

  • GENIUS compatible
  • Now available with EC motors

Avi35

PART # DESCRIPTION
E58-0135 AVI35 HYBRID HEAT RECOVERY UNIT
E58-0135EC Avi35 with EC MOTORS W/O 2WAY CONT.  **NEW!!**
*E58-0135MX Avi35 HYBRID WITHOUT 2WAY CONTACTOR

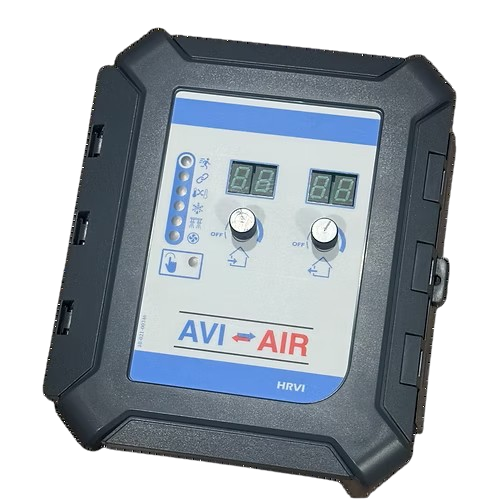

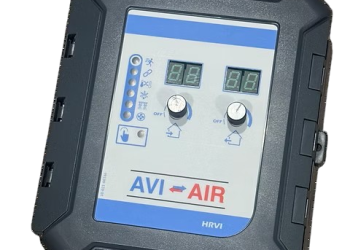

E58-0122 AVI-28 CONTROLLER- CALL SALES FOR INFO

*NOTE: IF 2 WAY CONTACTOR (PART# E58‐0120) IS NOT REQUIRED, PLEASE USE PART # E58‐0135MX

Avi-Air Replacement Parts and Accessories

PART # DESCRIPTION
E58-0120 TWO WAY CONTACTOR
E58-0121 SOLENOID VALVE (VALVE, SOLENOID AND BLACK DIN)
E50-1218QAV 2E35Q 240V AVI-AIR MOTOR BLACK
E50-3023AV 2E35 14″ MF FAN BLADE 25°     (TOP EXHAUST BLADE CUT TO 13-3/4″, BOTTOM INTAKE BLADE CUT TO 14-1/8″)
E58-0110 AVI-35 ONE PIECE CORE
E58-0111 AVI-35 TWO PIECE CORE
E58-0123 AVI-35 NOZZLE CLEANING KIT (INCL. 1/4 TO 1/8 N.T.P AND COUPLER)
E52-6560HD AVI-35 WINTER COVER (EXHAUST)
E52-6561HD AVI-35 WINTER COVER (INTAKE)   * NEW IN 2024 (16″ SQ.)
E52-6562HD AVI-35 WINTER COVER (INTAKE)  *PRIOR TO 2024 (32-3/8″ X 26-7/8″)
E58-0130EC AVI-35 EC MOTOR KIT (MOTOR, IMPELLER & ARMS)
USED TO CONVERT A.C TO E.C. (2 REQ’D IF CONVERTING COMPLETE UNIT)
