Details for Vortex High Performance Inline Duct Fans

When these inline duct blowers were conceived, reliability and efficiency were the main goal. Its more powerful motor combined with its aerodynamically designed shape make VORTEX POWERFANS the performance leader in its category.

Made in Canada, these high performance inline blowers feature superior steel construction with a Hammertone powder coat finish and convenient North American sizes from 4 to 12 inches.

Speed controllable and balanced motors with permanently lubricated ball bearings ensure vibration-free operation.

VORTEX POWERFANS is all about performance, reliability, and quality all wrapped up into one package to ensure peace of mind for years. GREAT CHOICE for positive pressure systems.

Specifications

DIA. MODEL PART # C.F.M. AIRFLOW @ .15 SP WATTS AMPS
4″ VTX400 E54-0104V 205 80 .65
5″ VTX500 E54-0105V 233 80 .65
6″ VTX600 E54-0106V 473 140 1.20
8″ VTX800L E54-0108V 615 185 1.60
8″ VTX800 E54-0108V747 696 260 2.20
10″ VTX1000 E54-0110V 740 260 2.20
12″ VTX1200L E54-0112V 858 350 2.95

1 year warranty for agricultural applications.

Supply/Exhaust Diffusers

DIA. MODEL PART #
4″ DR4 E54-0004
5″ DR5 E54-0005
6″ DR6 E54-0006
8″ DR8 E54-0008

Backdraft & Mechanical Dampers

Backdraft Dampers

DIA. MODEL PART #
4″ BDD4 E54-0024
5″ BDD5 E54-0025
6″ BDD6 E54-0026
8″ BDD8 E54-0028
10″ BDD10 E54-0030
12″ BDD12 E54-0032

Mechanical Dampers

Part # Description
*E57-8012 6″ MECHANICAL DAMPER
*E57-8016 8″ MECHANICAL DAMPER

* Requires a BELIMO ACTUATOR.

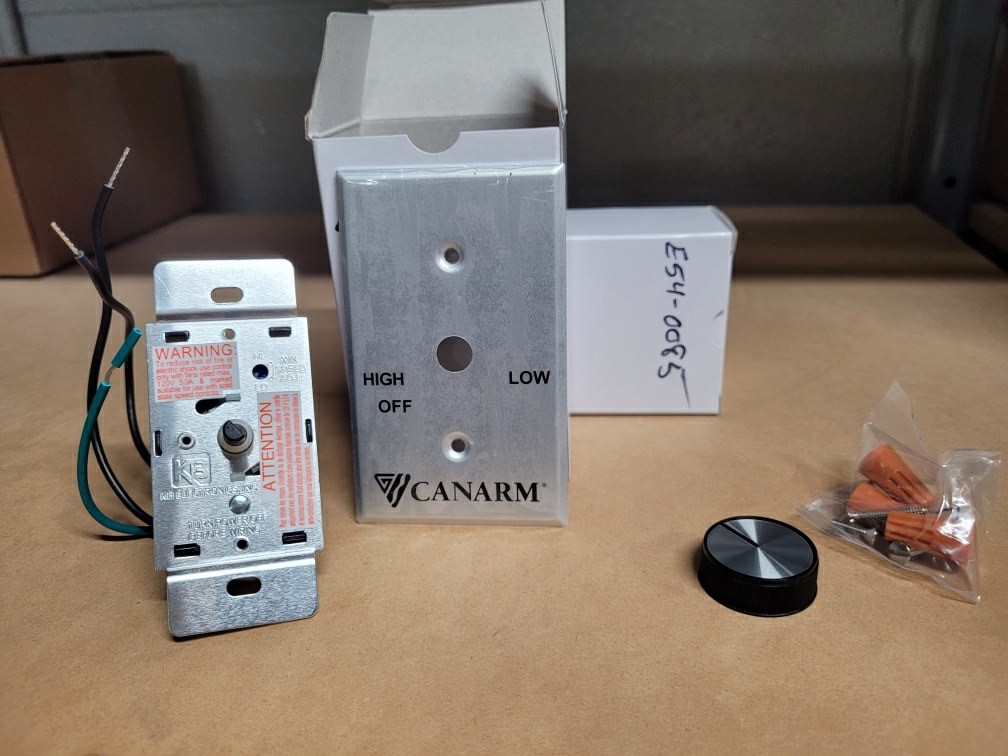

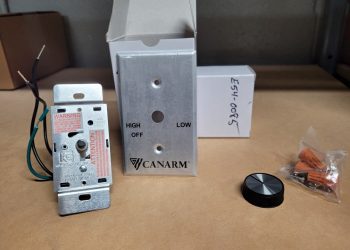

Variable Speed Controllers

PART # MODEL AMP
E54-0085 MC5 5.0 AMP

Air Mix Distratifier

Tired of wasting money & energy heating the ceiling?

The word destratification may be several syllables long, but it’s not a difficult concept to understand and apply. Air in any large enclosure, particularly conditioned air that has been heated in winter, or cooled in summer, tends to stratify or collect in layers. Warmer, lighter air lifts toward the ceiling and heavier, cooler air sinks toward the floor. This naturally-occurring process is called Thermal Stratification.

AIRMIX Destratifier Fans are purpose-designed to break up energy-robbing air strata by creating vertical convection currents that recirculate heated or cooled air, economically and efficiently.

MODEL PART #
AM1000 E54-0208V
