Details for Recov-Aire Heat Exchange System

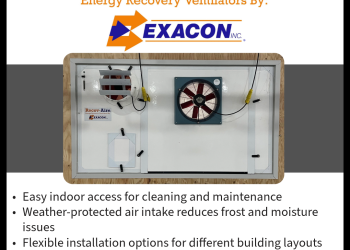

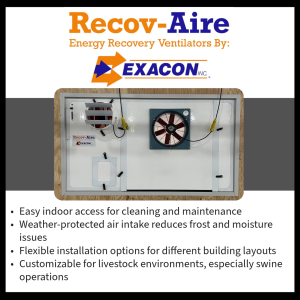

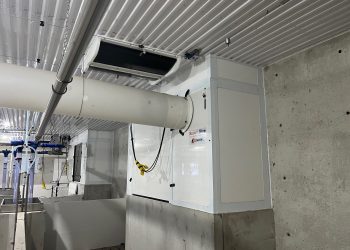

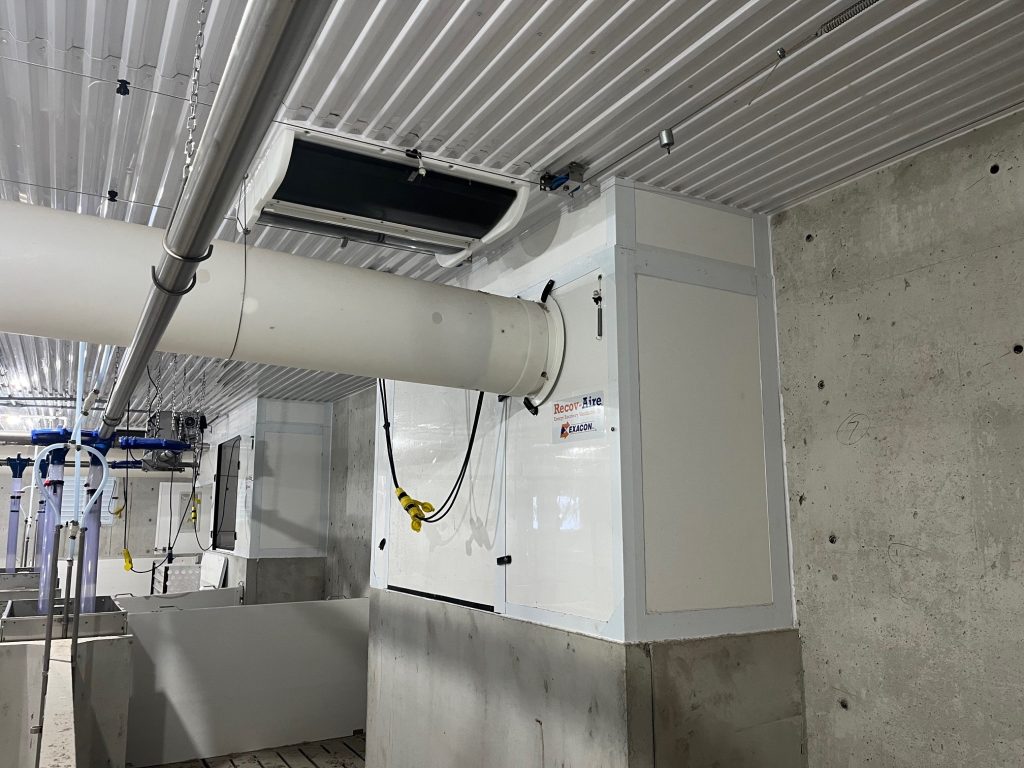

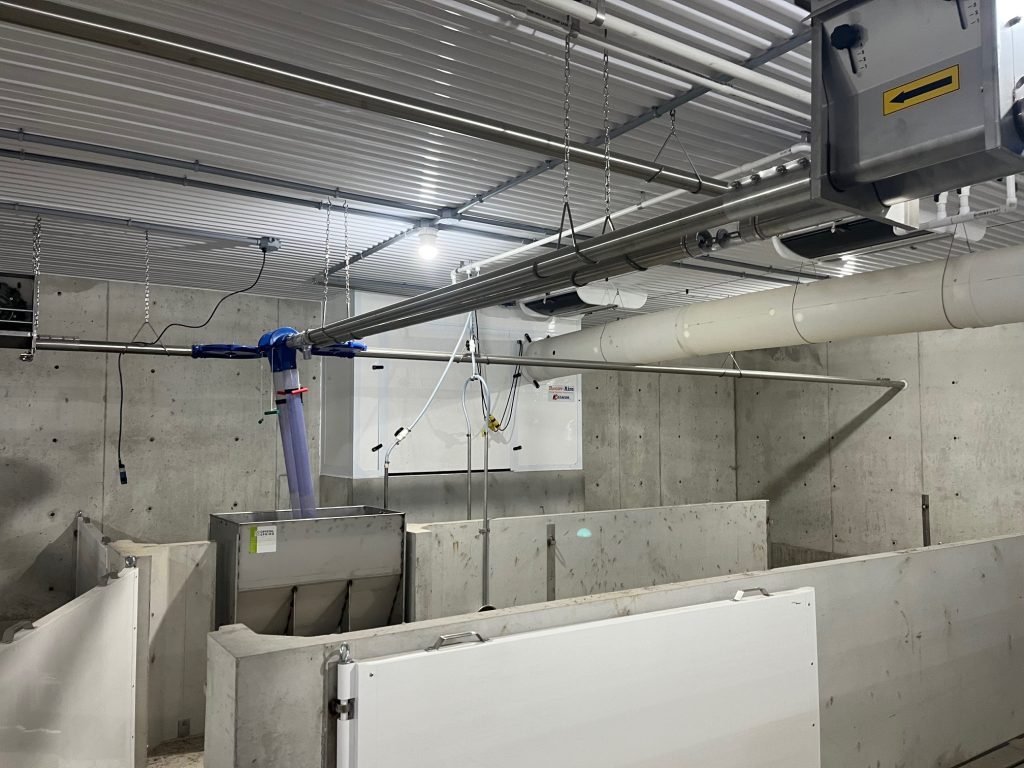

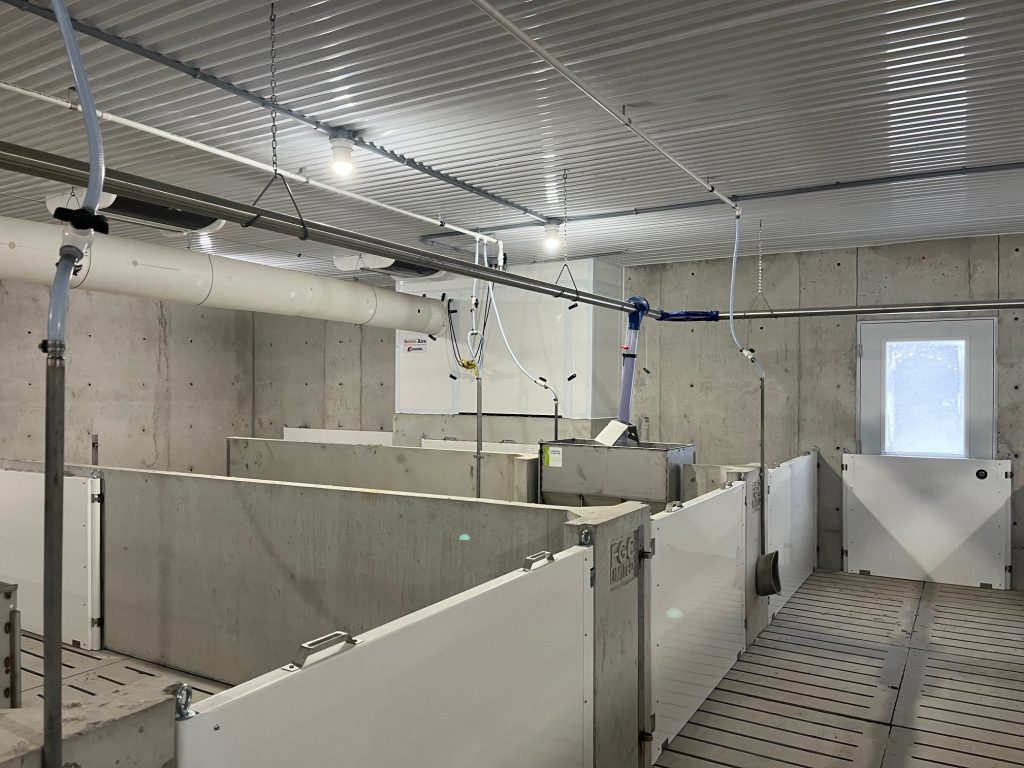

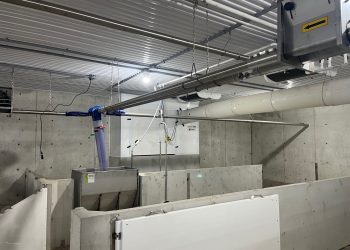

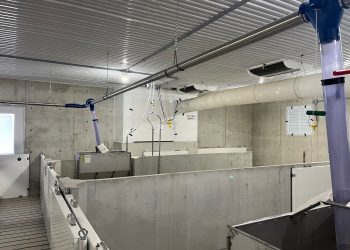

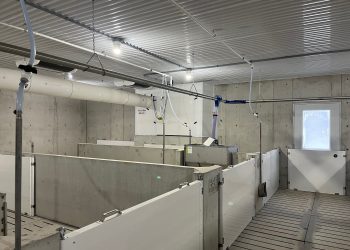

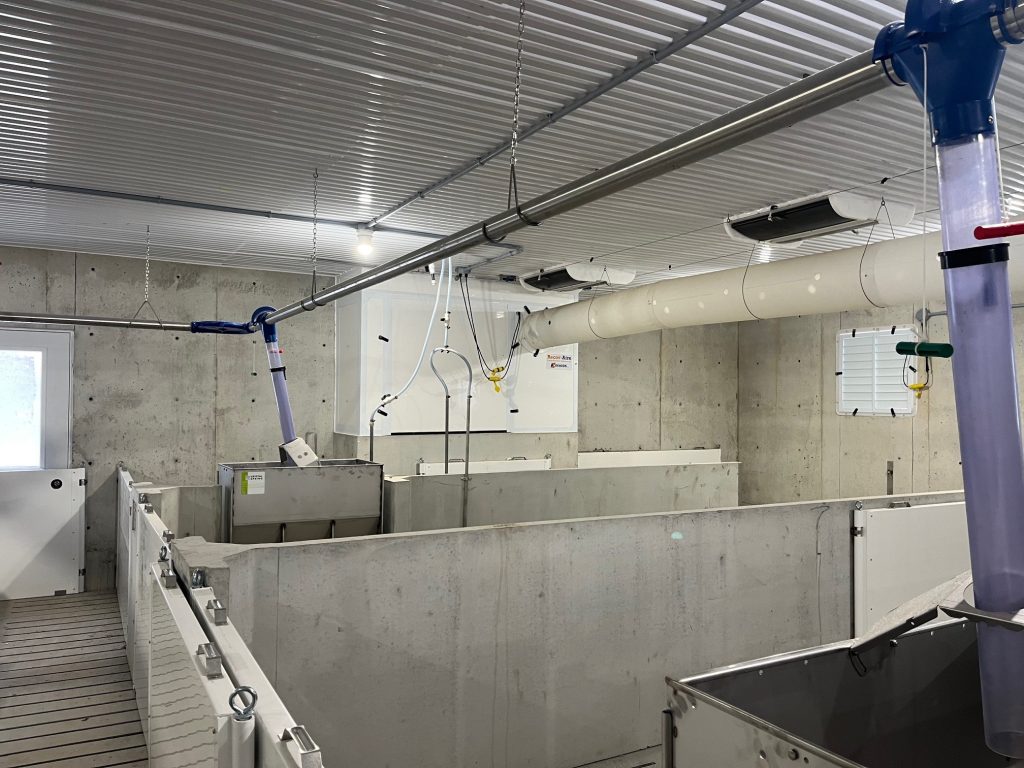

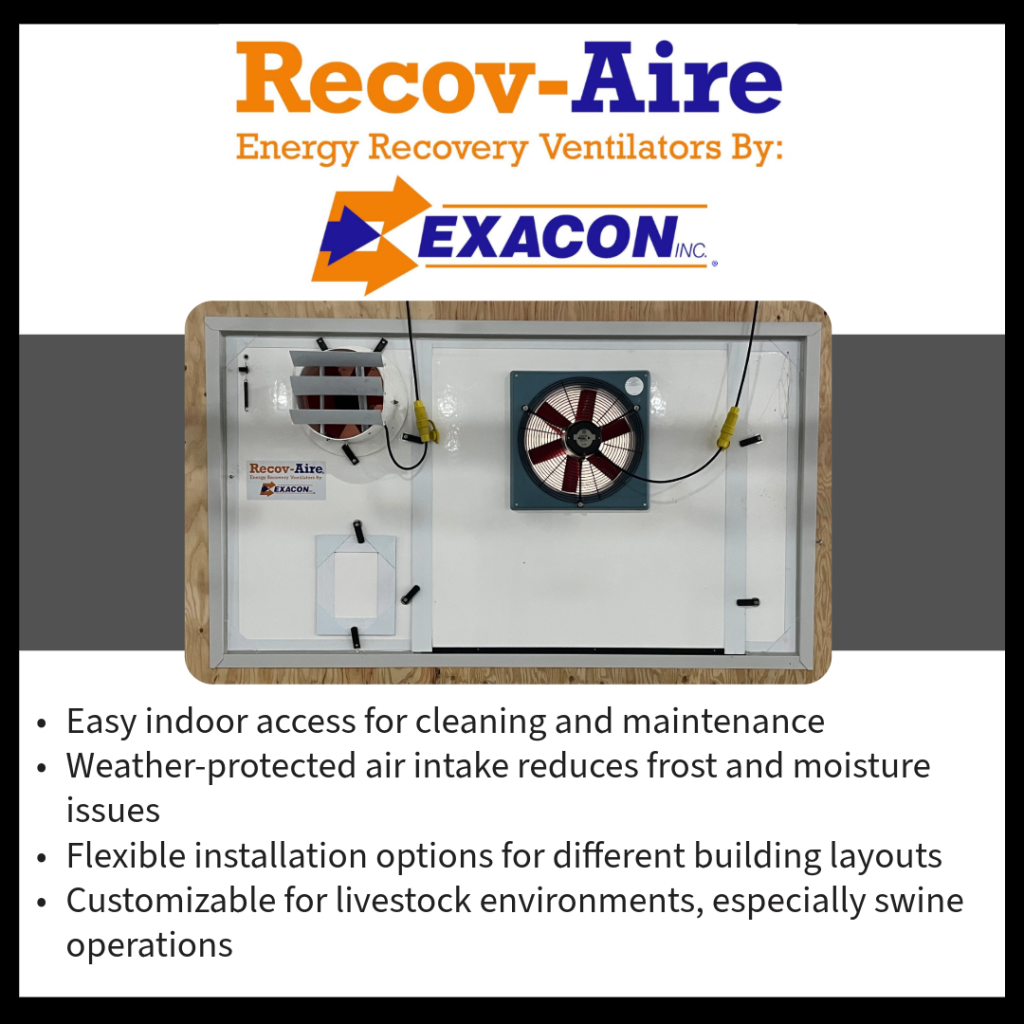

These models are designed to install flush to the inside wall. The heat exchange core is accessible from inside the building, for easy cleaning or removal. 7-45 & 8-70 have a vertical split core for easy handling and cleaning.

Specifications

PART# MODEL# DESCRIPTION
E58-0009 7-45 HEAT EXCHANGER RSO 88″W x 48-3/4″H
ALSO REQUIRED FOR INTAKE AND EXHAUST (7-45):
E50-0204Q   4E40Q 16″ MULTIFAN PANEL EXHAUST FAN
E50-6202Q   TF4E30Q 12″ INTAKE TUBE FAN
E58-0042   12″ ROUND DIFFUSER C/W VANES
E62-4220   FIXED AIR INLET LOUVRE 14X20 – FITS IN THE END OF 7-45
E58-0016   TOP INLET 7-45 KIT OPTION


MATERIAL KIT TO MOUNT INLET DUCT ON TOP OF HEAT EXCHANGE FOR AIR ENTRY FROM ATTIC SOFFIT OR WIND HOOD. PROVIDES BETTER WIND AND FROST PROTECTION AND RAIN / SNOW DEFLECTION.

MINIMAL CUTTING AND ASSEMBLY REQUIRED ON SITE.
E58-0011 8-70 HEAT EXCHANGER RSO 96″W  x 72-1/2″H  **
    NOTE: SIDE AIR INLET DUCT NO LONGER REQUIRED WITH NEW 8-70.
ALSO REQUIRED FOR INTAKE AND EXHAUST( 8-70):
E50-0205Q   4E45Q 18″ MULTIFAN PANEL EXHAUST FAN
E50-6203Q   TF4E35Q 14″ INTAKE TUBE FAN
E58-0043   14″ ROUND DIFFUSER C/W VANES
E62-4236   FIXED AIR INLET LOUVRE 11-1/2 x 36 – FITS ON THE END OF AIR INLET DUCT
E58-0017   TOP INLET 8-70 KIT OPTION


MATERIAL KIT TO MOUNT INLET DUCT ON TOP OF HEAT EXCHANGE FOR AIR ENTRY FROM ATTIC SOFFIT OR WIND HOOD. PROVIDES BETTER WIND AND FROST PROTECTION AND RAIN / SNOW DEFLECTION.

MINIMAL CUTTING AND ASSEMBLY REQUIRED ON SITE.

Note: 8-70 and 7-45 can be ordered with an access door to the core on the outside of building.

PART# MODEL# DESCRIPTION
E58-0009S 7-45S INSIDE HEAT EXCHANGER FS 87″ x 27-1/2″ x 48″H –  REQUIRED TO FIT ON PIT PLENUM 87″LONG x 27-1/2″ DEEP
ALSO REQUIRED FOR INTAKE AND EXHAUST:
PAGE 2.1a 12-16″ AGRIFAN
E50-6202Q TF4E30Q 12″ INTAKE TUBE FAN AIRBAGS OR DUCTING MAY BE RECOMMENDED FOR INTAKE SYSTEM
E58-0042 12″ ROUND DIFFUSER C/W VANES

Note: Custom design heat exchangers for swine can be considered.

OPTIONAL LABOUR ESTIMATES FOR TOP INLET KIT ONLY (E58-0016 / E58-0017), LABOUR CHARGES WILL BE BILLED TO THE DEALER FROM EXACON
1. Round trip travel from Exeter __ hours @ $80.00
2. Install Inlet One Storey Kit __ hours @ $80.00
3. Install Inlet Two Storey Kit __ hours @ $80.00

NOTE: ASSISTANCE MUST BE PROVIDED BY THE DEALER PLUS EQUIPMENT FOR TWO STOREY INSTALLATION OF TOP INLET KIT MUST ALSO BE PROVIDED BY THE DEALER OR CUSTOMER.

Parts

PART# DESCRIPTION
E58-0020 7-45/7-70 REPLACEMENT TUBES (46″ long)
E62-4033 14″ x 12″ INSULATED FLEX DUCTING (per/ft)
E62-4043 14″ x 25FT INSULATED FLEX DUCT (per/roll)
E62-1136 36″ NYLON TIE (max. 10″ diameter)
E58-0091 14″ GALVANIZED MODULE (approx. 12″ long)
E58-0092 14″ GALVANIZED INTAKE BOOT
E58-0094 14″ x 36″ GALVANIZED INSULATED EXTENSION
E58-0097 14″ GALVANIZED ADAPTOR (approx. 6″ long)
