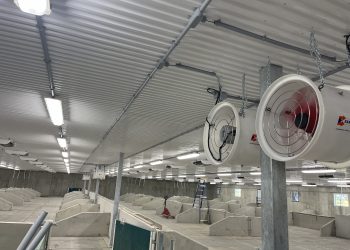

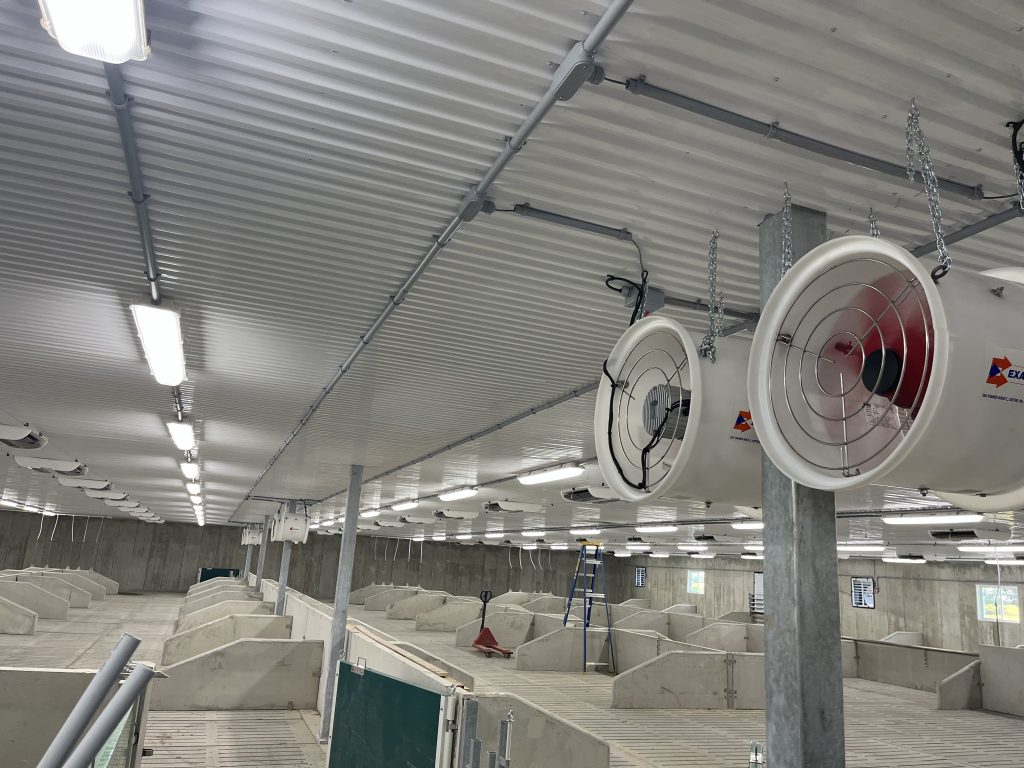

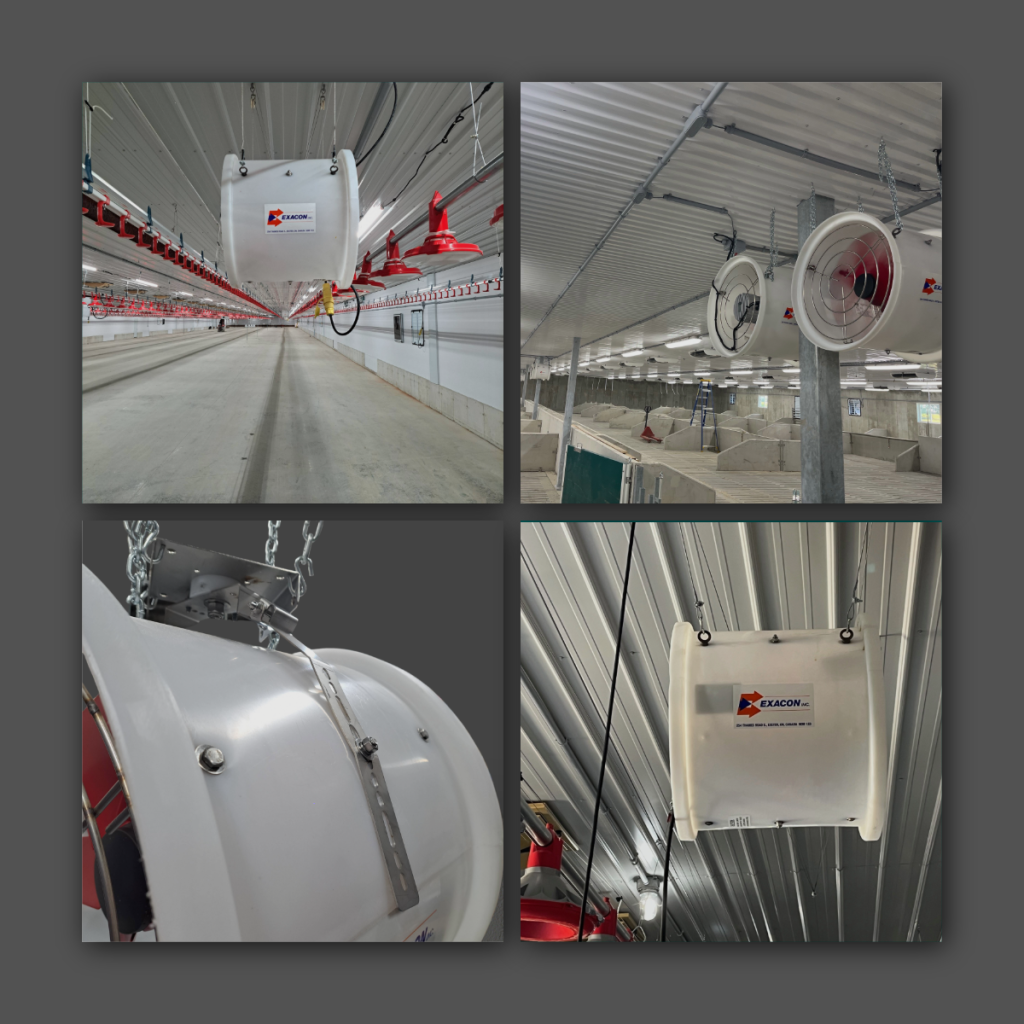

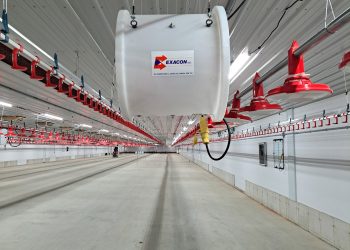

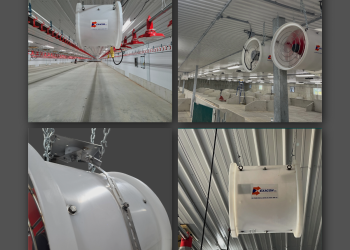

Details for Recirculation Fans

  • Polyethylene Housing
  • Wire Guard front and back
  • Automatic Thermal Protection
  • Includes 10′ chain, 4 “S” hooks, 4 screw hooks to hang from the ceiling

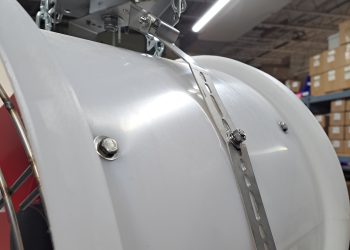

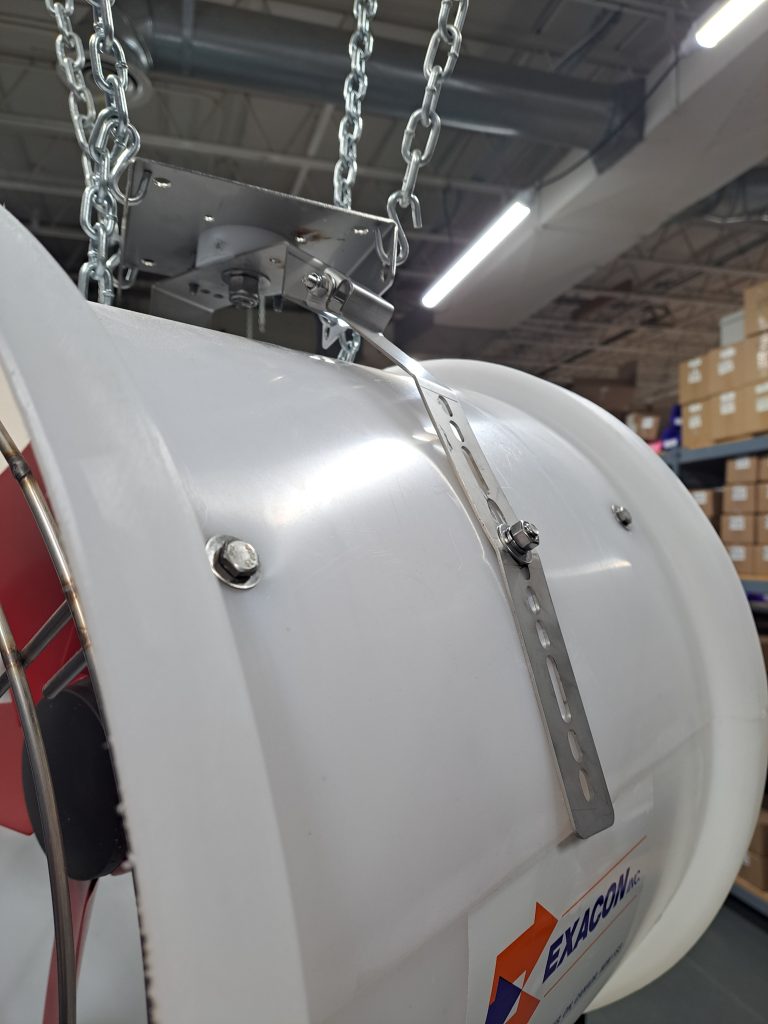

  • NEW- Swivel hanging bracket* to allow airflow to corners, hot spots or dead air pockets (34, 45, 60 and 90 degrees)
  • *the above bracket is currently available by special order for the 18″ model, more sizes to come.

Multifan Series

*Supplied with stainless steel wireguards (as available)

Multifan motors may be operated one speed or variable speed.
** 36″ diameter fans are variable down to 120 volt **

MODEL DIA. PART # VOLT AMPS R.P.M. C.F.M. @ 0″ S.P.
MODEL “CF” FANS HAVE GUARDS ON BOTH SIDES – USE FOR CIRCULATION
CF12MQ* 12″ E54-4282Q 240 0.60 1600 1402
CF16(25)MQ* 16″ E54-4584Q 240 1.50 1600 2742
CF18(3)MQ* 18″ E54-4585QCL 240 1.80 1600 3566
CF18(3)MQ* 18″ E54-4585Q 240 1.80 1600 3566
CF24(5)MQ* 24″ E54-4588Q 240 2.80 1600 5705
CF36MFLEX 36″ E54-4259 240 3.20 770 11,398
MODEL “RE” FANS HAVE INTAKE GUARD ONLY – USE FOR AIR BAG SYSTEM
RE12MQ* 12″ E54-5282Q 240 0.60 1600 1402
RE16(25)MQ* 16″ E54-5584Q 240 1.50 1600 2742
RE18(3)MQ* 18″ E54-5585QCL 240 1.80 1600 3566
RE18(3)MQ* 18″ E54-5585Q 240 1.60 1600 3566
RE24(5)MQ* 24″ E54-5588Q 240 2.80 1600 5705
MODEL “CR” FANS ARE VERTICALLY MOUNTED RECIRC FANS
CR16(25)MQ 16″ E54-9224Q 240 1.50 1600 2742
CR20(3)MQ 20″ E54-9226(3)Q 240 1.80 1600 4439

3 year warranty

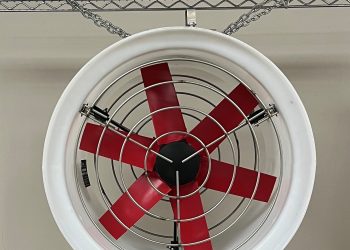

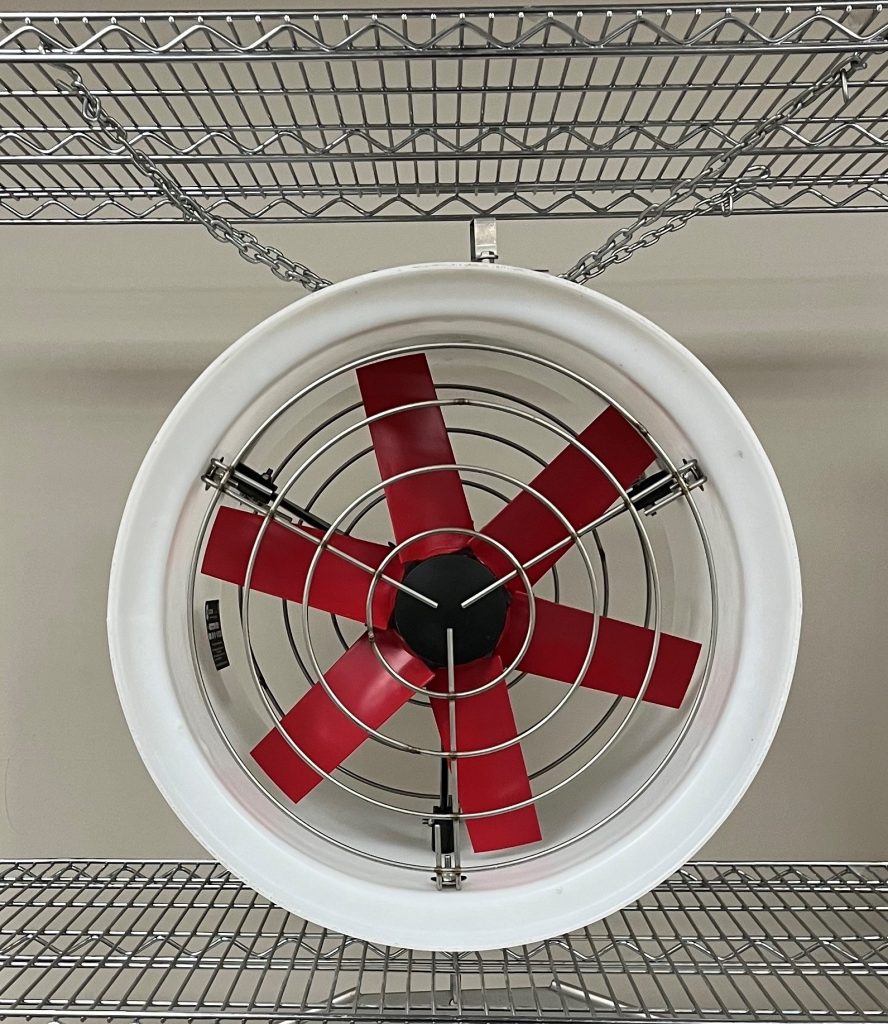

Circulating Fans (CF)

  • Comes with energy efficient variable speed Multifan motor
  • Automatic thermal protection
  • Wire guard on front and back
  • Polyethylene housing
  • Includes 10′ chain, 4 “s” hooks, and 4 screw hooks to hang from the ceiling

Recirculating Fans (RE)

  • Comes with energy efficient variable speed Multifan motor
  • Automatic thermal protection
  • Wire guard on back side
  • Polyethylene housing
  • Includes 10′ chain, 4 “s” hooks, and 4 screw hooks to hang from the ceiling

Vertical Mounted Circular Recirculating Fan (CR)

*Available with Leeson Motor and Multifan Motor

  • Comes with energy efficient variable speed motors
  • Automatic thermal protection
  • Polyethylene housing and PVC directional wind vanes
  • Includes 10′ chain, 4 “s” hooks and 4 screw hooks to hang from the ceiling

Hanging Hardware

PART # DESCRIPTION
E54-5535 FLAG MOUNT HANGING BRACKET (FOR 18″ RECIRCULATING FANS ONLY)
E54-5533 CF18 ST.ST. SWIVEL BRACKET

Leeson Performa+ Series

*Supplied with stainless steel wireguards (as available)

Leeson Motors may be operated one speed or variable speed.

MODEL DIA. PART # VOLT AMPS R.P.M. C.F.M. @ 0″ S.P.
MODEL “CF” FANS HAVE GUARDS ON BOTH SIDES – USE FOR CIRCULATION
CF12LP* 12″ E54-4142 115/230 2.6/1.3 1625 1572
CF16LP* 16″ E54-4144 115/230 2.6/1.3 1625 2792
CF18LP* 18″ E54-4145CL 115/230 3.6/1.8 1625 3695
CF18LP* 18″ E54-4145 115/231 3.6/1.9 1625 3695
CF24LP* 24″ E54-4148 115/230 5.2/2.6 1625 6376
MODEL “RE” FANS HAVE INTAKE GUARD ONLY – USE FOR AIR BAG SYSTEM
RE12LP* 12″ E54-5142 115/230 2.6/1.3 1625 1572
RE16LP* 16″ E54-5144 115/230 2.6/1.3 1625 2792
RE18LP* 18″ E54-5145CL 115/230 3.6/1.8 1625 3695
RE18LP* 18″ E54-5145 115/230 3.6/1.8 1625 3695
RE24LP* 24″ E54-5148 115/230 5.2/2.6 1625 6376
MODEL “CR” FANS ARE VERTICALLY MOUNTED RECIRC FANS
CR16LP 16″ E54-9124 115/230 2.6/1.3 1625 2792
CR20LP 20″ E54-9126 115/230 3.6/1.8 1625 4770

1 year motor warranty

Circulating Fans (CF)

  • Comes with energy efficient variable speed Leeson Performa+ motor
  • Automatic thermal protection
  • Dual voltage
  • Wire guard on front and back
  • Includes 10′ chain, 4 “s” hooks, and 4 screw hooks to hang from the ceiling

Recirculating Fans (RE)

  • Comes with energy efficient variable speed Leeson Performa+ motor
  • Automatic thermal protection
  • Dual voltage
  • Wire guard on back side
  • Polyethylene housing
  • Includes 10′ chain, 4 “s” hooks, and 4 screw hooks to hang from the ceiling

Vertical Mounted Circular Recirculating Fan (CR)

  • Comes with energy efficient variable speed motors
  • Automatic thermal protection
  • Polyethylene housing and PVC directional wind vanes
  • Includes 10′ chain, 4 “s” hooks, and 4 screw hooks to hang from ceiling

Hanging Hardware

PART # DESCRIPTION
E54-5535 FLAG MOUNT HANGING BRACKET (FOR 18″ RECIRCULATING FANS ONLY)
E54-5533 CF18 ST.ST. SWIVEL BRACKET
