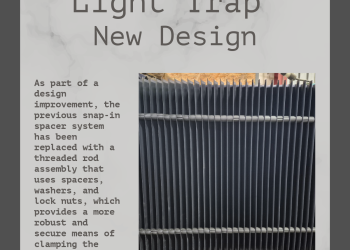

Light Trap Extrusion and Accessories
- High light reduction
- Easy to clean
- Will not corrode
- Lightweight
- Made from 0.05″ thick ultraviolet resistant P.V.C
- Easy to assemble (on the job) using P.V.C. spacers
- Simple installation
- Low resistance to air flow
| FAN SIZE | MODEL | PART # | DIMENSIONS W” X H” X D” | SQUARE FEET |
| 12″ | LT-AF12 | E52-6702 | 20.25″ x 20″ x 9″ | 2.8 |
| 16″ | LT-AF16 | E52-6704 | 24.25″ x 24″ x 9″ | 4.00 |
| 18″ | LT-AF18 | E52-6705 | 26.25″ x 26″ x 9″ | 4.70 |
| 20″ | LT-AF20 | E52-6706 | 28.25″ x 28″ x 9″ | 5.44 |
| 24″ | LT-AF24 | E52-6708 | 32.25″ x 32″ x 9″ | 7.11 |
| 25″ | LT-AF25 | E52-6725 | 36.25″ x 36″ x 9″ | 9.00 |
| 28″ | LT-AF28 | E52-6712 | 40.25″ x 40″ x 9″ | 11.11 |
| 36″ | LT-AF36/OS* | E52-6709 | 46.25″ x 46″ x 9″ | 14.70 |
| 36″ | LT-AF36E | E52-6736 | 48.25″ x 48″ x 9″ | 16.00 |
| 48″ | LT-AF48 | E52-6710 | 58.25″ x 58″ x 9″ | 23.36 |
| 50″ | LT-AF50/OS* | E52-6752 | 67.25″ x 67″ x 9″ | 31.17 |
| 50″ | LT-AFG50/50LE | E52-6753 | 70.25″ x 64″ x 9″ | 31.11 |
| 60″ | LT-AFG60 | E52-6754 | 71.25″ x 71″ x 9″ | 35.00 |
| 36″ | LT-MF36 | E52-6736 | 48.25″ x 48″ x 9″ | 16.00 |
| 50″ | LT-MF50 | E52-6750 | 64.25″ x 64″ x 9″ | 28.00 |
| 96″ | LT-96 | E52-6796 | 96.25″ x 96″ x 9″ | 64.00 |
* /OS – Old style (fits 54″ cone fan)
Special Size
| PART # | DESCRIPTION |
| E52-6799 | ONE SQUARE FOOT OF LIGHT TRAP (ROUNDED UP TO THE NEAREST FOOT) |

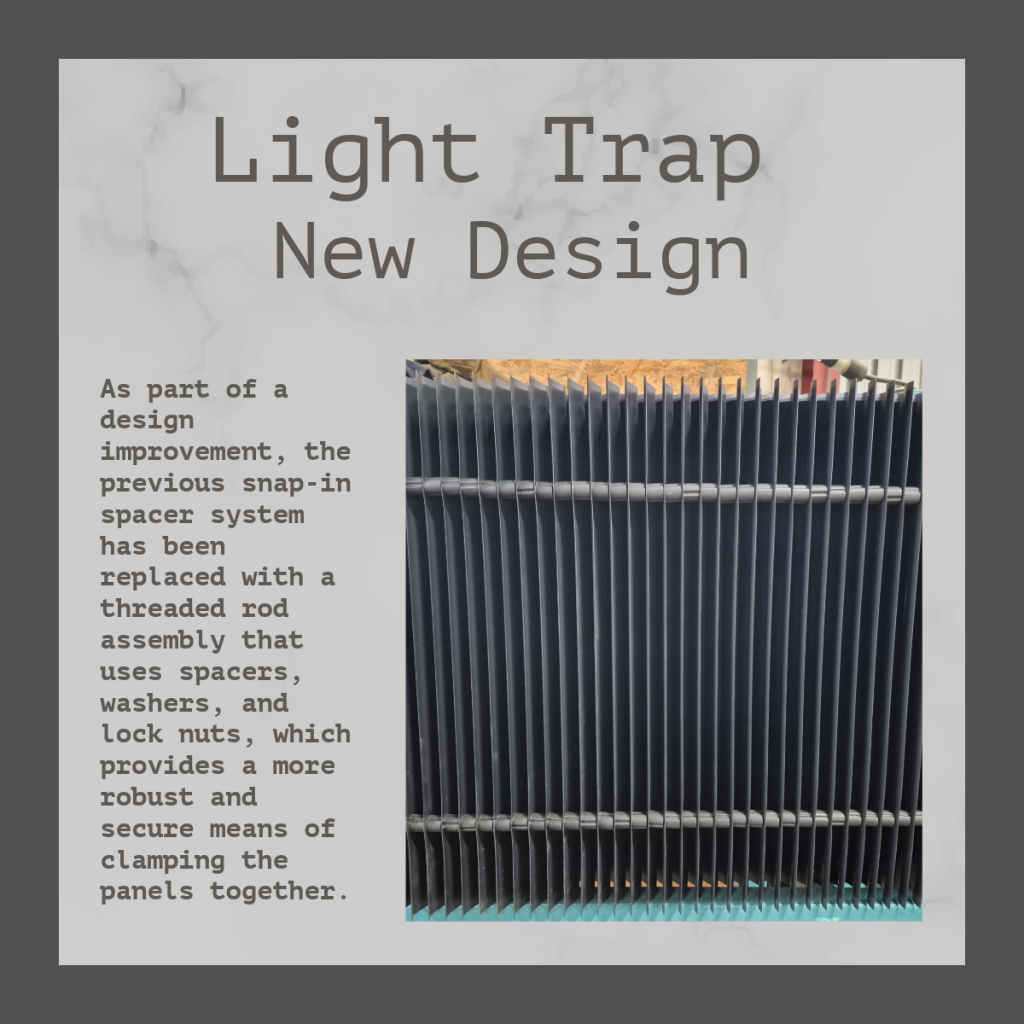

Product is shipped pre-cut and pre-punched for fast assembly (on the job) using 0.95″ snap release spacers.
Note: The use of a light trap may result in a 5% – 8% loss of C.F.M. and should be taken into consideration when calculating exhaust requirements.
Component
| PART # | DESCRIPTION |
| E52-6650-IN | LIGHT TRAP MATERIAL (SOLD PER INCH IN 96″‘ LENGTHS/UNPUNCHED) |
| E52-6655 | 0.95″ SNAP AND RELEASE SPACERS (SOLD IN BAGS OF 100) |
| E52-6660-IN* | LIGHT TRAP MATERIAL (SOLD PER INCH IN 96″‘ LENGTHS/PRE-PUNCHED) |
| ABOVE PUNCHED AT THE FOLLOWING INTERVALS: 6″ *, 42″ *, 42″ *, 6″ (* = ROW OF HOLES) |
*Use this part number when quoting light traps for continuous inlets, etc. Ensure to order the required number of spacers (6 pieces per length)
Light Trap Extrusion with Galvanized Frame
- High light reduction
- Easy to clean
- Will not corrode
- Lightweight
- Made from 0.05″ thick ultraviolet resistant P.V.C
- Simple installation
- Low resistance to air flow
| FAN SIZE | MODEL | PART # | DIMENSIONS W” X H” X D” | SQUARE FEET |
| 12″ | LT-AF12 | E52-6702GF | 20″ x 20″ x 9″ | 2.80 |
| 16″ | LT-AF16 | E52-6704GF | 24″ x 24″ x 9″ | 4.00 |
| 18″ | LT-AF18 | E52-6705GF | 26″ x 26″ x 9″ | 4.70 |
| 20″ | LT-AF20 | E52-6706GF | 28″ x 28″ x 9″ | 5.44 |
| 24″ | LT-AF24 | E52-6708GF | 32″ x 32″ x 9″ | 7.11 |
| 25″ | LT-AF25 | E52-6725GF | 36″ x 36″ x 9″ | 9.00 |
| 28″ | LT-AF28 | E52-6712GF | 40″ x 40″ x 9″ | 11.11 |
| 36″ | LT-AF36/OS* | E52-6709GF | 46″ x 46″ x 9″ | 14.70 |
| 36″ | LT-AF36E | E52-6736GF | 48″ x 48″ x 9″ | 16.00 |
| 48″ | LT-AF48 | E52-6710GF | 58″ x 58″ x 9″ | 23.36 |
| 50″ | LT-AF50/OS* | E52-6752GF | 67″ x 67″ x 9″ | 31.17 |
| 50″ | LT-AFG50/50LE | E52-6753GF | 70″ x 64″ x 9″ | 31.11 |
| 60″ | LT-AFG60 | E52-6754GF | 71″ x 71″ x 9″ | 35.00 |
| 36″ | LT-MF36 | E52-6736GF | 48″ x 48″ x 9″ | 16.00 |
| 50″ | LT-MF50 | E52-6750GF | 64″ x 64″ x 9″ | 28.00 |
| 96″ | LT-96 | E52-6796GF | 96″ x 96″ x 9″ | 64.00 |
* /OS – Old style (fits 54″ cone fan)
The use of a light trap may result in a 5% – 8% loss of C.F.M and should be taken into consideration when calculating exhaust requirements.
SPECIAL SIZE PRICING
| PART # | DESCRIPTION |
| E52-6799 | ONE SQUARE FOOT OF LIGHT TRAP (ROUNDED UP TO THE NEAREST FOOT) |
COMPONENT PRICING
| PART # | DESCRIPTION |
| E52-6650-IN | LIGHT TRAP MATERIAL (SOLD PER INCH IN 96″‘ LENGTHS/UNPUNCHED) |
