Details for Direct Drive Fans (EC) Electrically Commutated

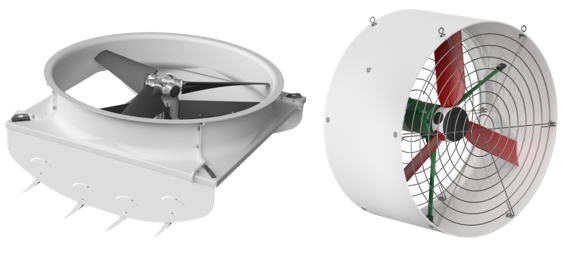

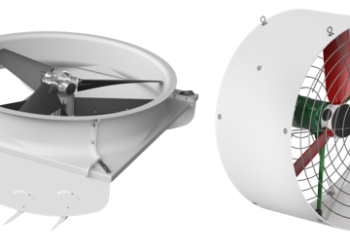

Better Air EC Fans

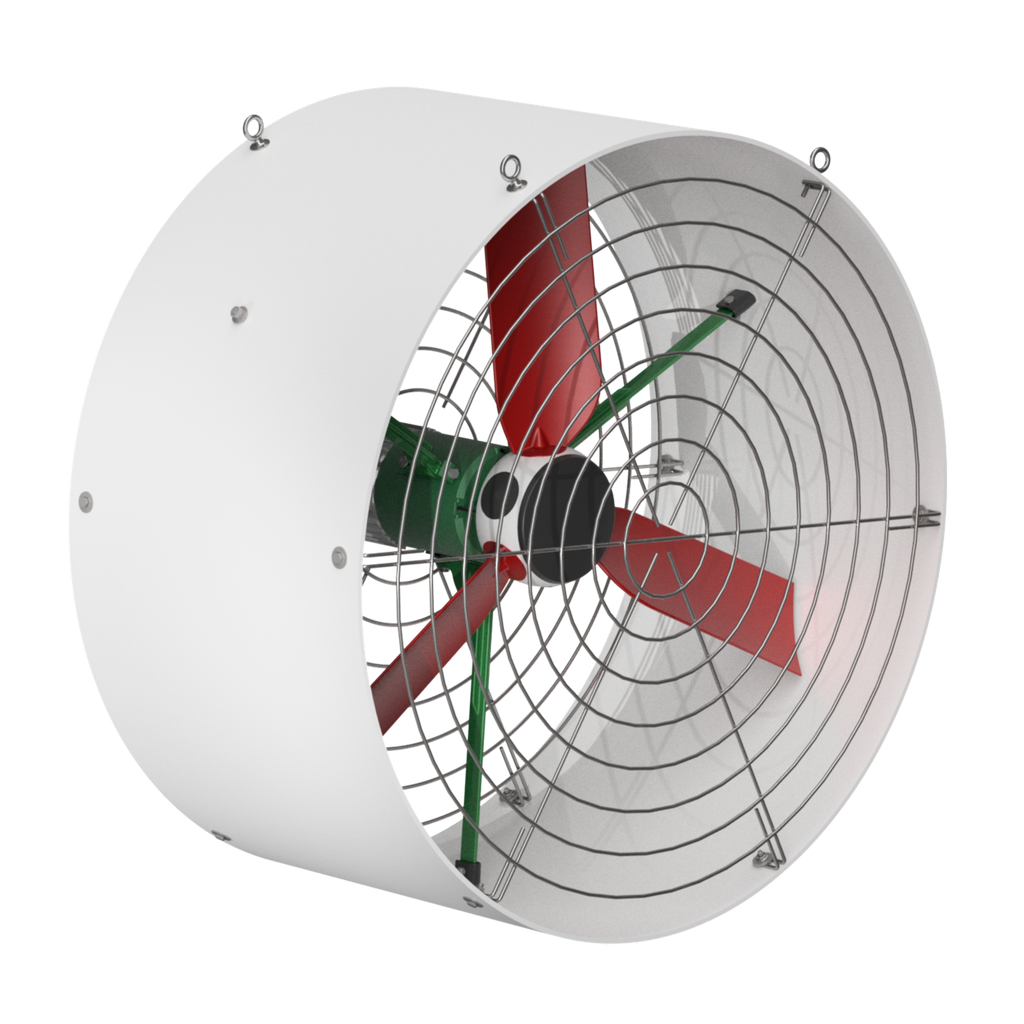

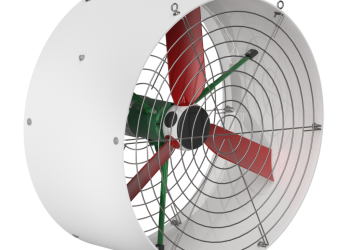

EC DIRECT DRIVE STIRFANS

DIA PART # DESCRIPTION COLOUR HP/KW VOLTS FLA* PHASE
18″ E54-4215 CF18EC STIRFAN WHITE 0.33 240 1.3 1
24″ E54-4218 CF24EC STIRFAN WHITE 0.5 240 2.2 1
36″ E54-4136 CF36EC STIR FAN WHITE 1.0 115/230 9.8/5.8 1

*FLA= FULL LOAD AMPERAGE

  • Optimized Air Circulation
  • Durable and waterproof
  • Easy Installation
  • Stir fan has energy efficient EC Motor
  • Improved livestock health
  • Customizable Settings

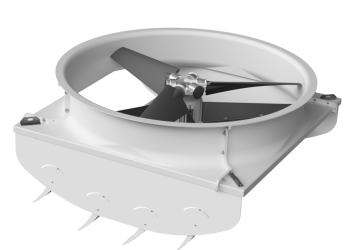

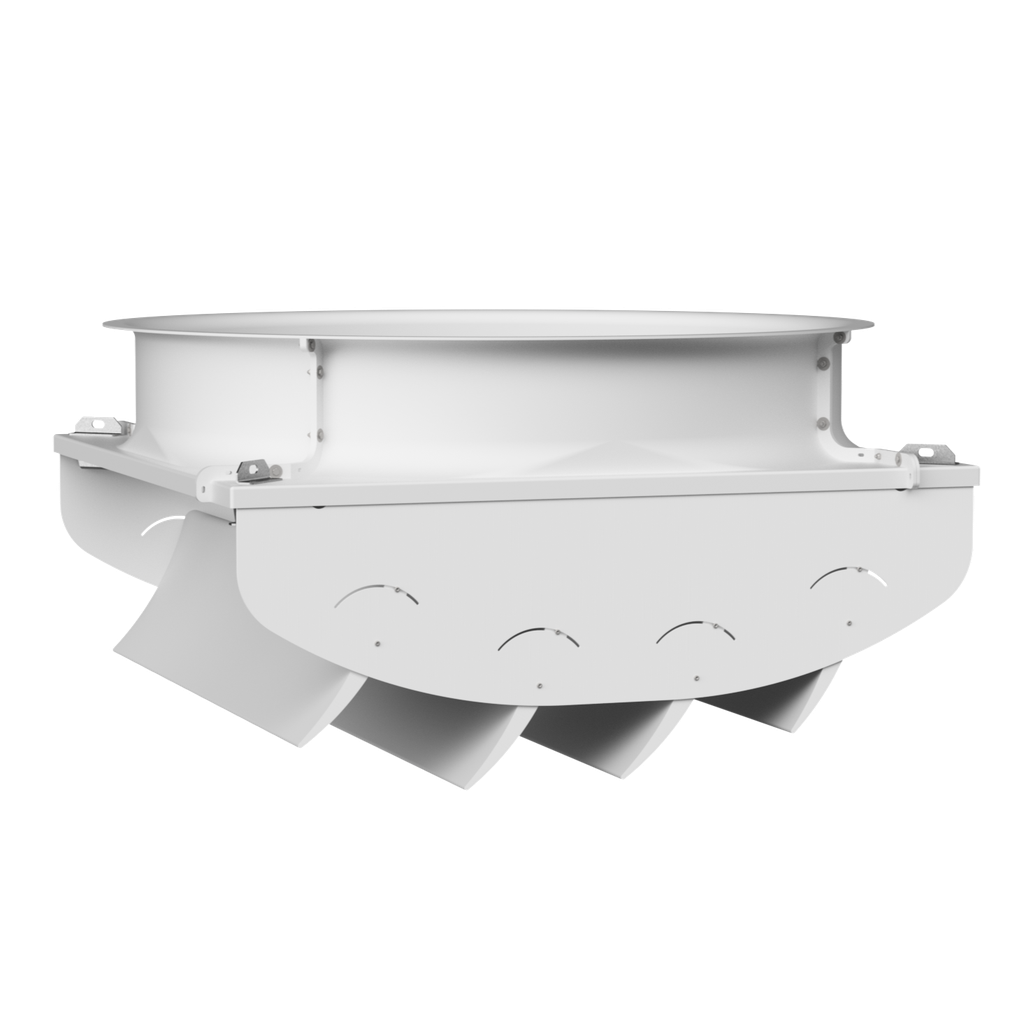

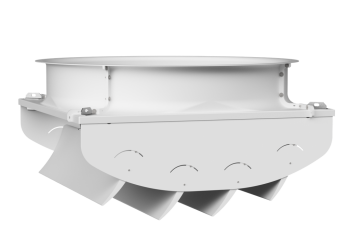

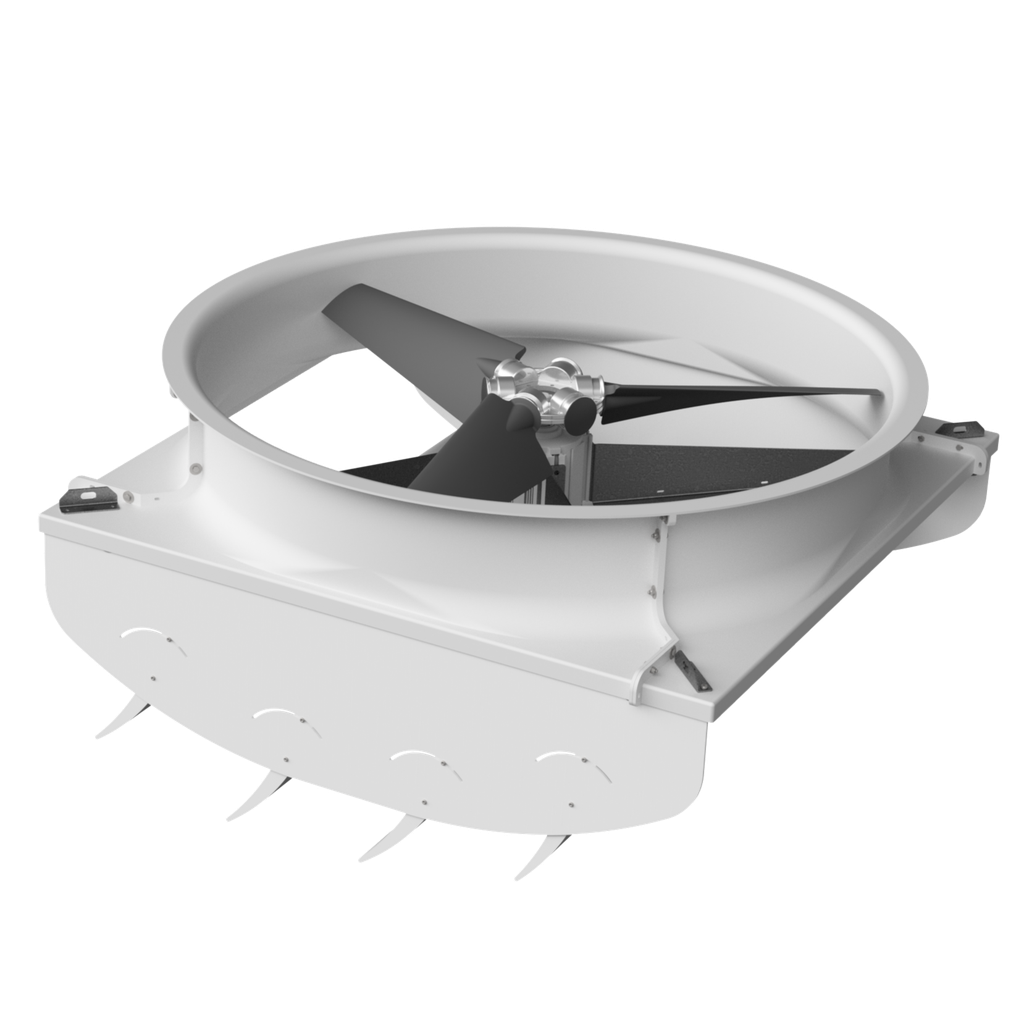

54" EC DIRECT DRIVE LOUVERED AIR BLASTER

DIA. PART # DESCRIPTION COLOUR HP/KW VOLTS PHASE
54″ E54-4254-1 AIR BLASTER WHITE 1.5 230 1
54″ E54-4254-3 AIR BLASTER WHITE 1.5 230 3
  • The product utilizes a cost-effective, variable speed ECM motor for precise environmental control, eliminating the need for an external VFD drive.
  • Built using corrosion resistant materials like fiberglass, HDPE plastic and galvanized steel, for years of use.
  • Louvered circulation fans are ideal for dairy barns, promoting cow comfort and productivity by reducing heat stress, moisture buildup, and odors. They improve air quality; help control pests and keep bedding dry by maintaining steady airflow. Designed for energy efficiency, they offer strong ventilation while lowering costs, and their adjustable louvers let you target airflow where it’s needed most.

GENIUS EC FANS

DIA. PART # DESCRIPTION COLOUR R.S.O. HP/KW VOLTS PHASE RPM
14″ E52-7714B AF14EC-GEN BLACK 17.5″ X 17.5″ 0.25 240 1 1800
14″ E52-7714W AF14EC-GEN WHITE 17.5″ X 17.5″ 0.25 240 1 1800
18″ E52-7718B AF18EC-GEN BLACK 21.5″ X 21.5″ 0.33 240 1 1800
18″ E52-7718W AF18EC-GEN WHITE 21.5″ X 21.5″ 0.33 240 1 1800
25″ E52-7725B AF25EC-GEN BLACK 32″ X 32″ 0.5 240 1 1800
25″ E52-7725W AF25EC-GEN WHITE 32″ X 32″ 0.5 240 1 1800
25″ E52-7726B AF25EC-GEN-LS BLACK 32″ X 32″ 1.0 240 1 1100
25″ E52-7726W AF25EC-GEN-LS WHITE 32″ X 32″ 1.0 240 1 1100
36″ E52-7738B AF36EC-GEN BLACK 44″ X 44″ 1.0 240 1 1100
36″ E52-7738W AF36EC-GEN WHITE 44″ X 44″ 1.0 240 1 1100
  • ECM Motor results in best-in-class efficiency and performance.
  • Variable Speed uses a 0-10v signal eliminating the need for costly VFD’s and giving you precise control of your environment.
  • Direst Drive operation results in very little maintenance, no belts, bearings or shafts.
