CF36M-Flex (Turbo 36)
Energy efficient splash proof variable speed motor (variable down to 120 volt). Automatic thermal protection direct drive. Easy to hang and relocate if necessary.
Mount options: Ceiling Mount or Truss Mount
| MODEL | DIA. | PART# | VOLT | PHASE | AMPS | R.P.M. | CFM@0″ S.P. |
| CF36M/FLEX | 36″ | E54-4259 | 240 | 1 |
3.2 | 770 | 11,398 |
| CF36MQ-3PHS |
36″ | E54-4279Q | 208-380 | 3 | 3.8/2.2 | 790 | 11,398 |

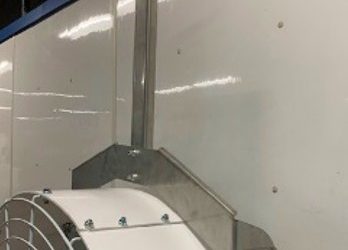

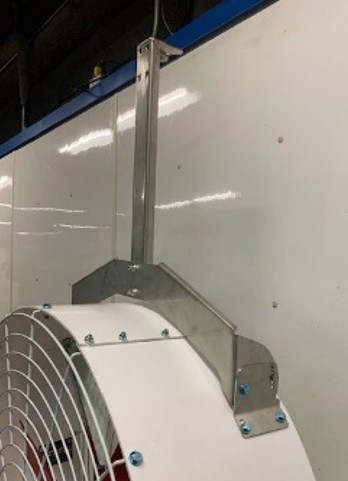

| MOUNT OPTIONS | E54-5540 | CEILING MOUNT (STAINLESS STEEL) | |||||
Replacement Parts
| MODEL | PART# | DESCRIPTION | |
| CF36M/FLEX MOTOR | E50-1254 | .50HP 8 POLE M/FLEX MOTOR | 3 YEAR MOTOR WARRANTY |
| CF36M/FLEX BLADE | E50-3011 | 36″ FAN BLADE – POLY | |
| CF36MQ-3PHS |
E50-1279Q | 8D92Q 3PHASE MULTIFAN MOTOR | 3 YEAR MOTOR WARRANTY |
50" Basket Fan (M-Flex or Leeson)
High level of air movement and throw, low noise level 67db(a), easy installation and low maintenance. Especially effective in dairy applications for cooling, increased milk production and fly reduction.
*Leeson motor – equipped with a removable link belt (after 3-4 weeks running time, a link should be removed).
*M-Flex motor – equipped with a rubber belt (eliminating the need for a belt tightener).
| MODEL | DIA. | PART# | VOLT | PHASE | AMPS | R.P.M. | CFM@0″ S.P. |
| BF50 M-FLEX | 50″ | E50-0292-FLEX | 240 | 1 | 5.8 | 580 | 28,298 |
| BF50 M-FLEX | 50″ | E50-0293-FLEX | 208/460 | 3 | 3.49/2.01 | 580 | 28,298 |
| BF50L | 50″ | E50-0292 | 115/230 | 1 | 8.6/4.3 | 580 | 28,298 |
| BF50(460)* | 50″ | E50-0293 | 208/460 | 3 | 3.4 | 580 | 28,298 |
| BF50(575)* | 50″ | E50-0295 | 575 | 3 | 1.1 | 580 | 28,298 |
| OPTIONAL | 50″ | E52-0540Q | BF50 BELT TIGHTENER | ||||
| BF50 HANGING KIT | E54-5530 | **POST MOUNT SUSPENSION KIT (order separately NEW DESIGN) | |||||
* 3 Phase option (special order)
Replacement Parts
| MODEL | PART # | DESCRIPTION |
| BF50M-FLEX MOTOR | E50-1260 | 1HP M-FLEX 1 PHASE MOTOR |
| BF50M-FLEX MOTOR | E50-1267 | 1HP M-FLEX 3 PHASE MOTOR |
| BF50 MOTOR | E52-5127 | 1HP MOTOR |
| BF50 MOTOR | E52-5121 | 1HP MOTOR T635 208V TEAO |
| BF50 MOTOR | E52-5136 | 1HP MOTOR T606 575V TEAO |
| BF50 PULLEY | E50-0393 | SPA93 MOTOR PULLEY |
| BF50 BEARING | E50-0524Q | BF50 BEARING (10NR)-LA62032 RSHC4H |
| BF50 V-BELT | E50-0542Q | BF50 V-BELT (VSNAARA) TYPE A 2168mm (85.35″) |
| BF50 IMPELLER (SET/3) | E50-0537Q | BF50 IMPELLER SET OF 3 FINS (10NR) |
| BF50 HUB & PULLEY | E50-0539Q | BF50 HUB & PULLEY (10NR) |
