Details for Ceiling Inlets/Wall Inlets/Aluminum Shutters
TJ4200 Topjet Ceiling Air Inlet
A revolutionary, patent pending design that maximizes jet technology. All season, four directional inlet features louvers that open from the top instead of the bottom. This directs air along the ceiling and holds the air up longer while mixing with room air, distributing it more evenly throughout the room.
**Snap together design, two inlets per box.
| PART # |
MODEL # |
COLOUR |
R.S.O. |
CFM |
| E65-2050 |
TJ4200 |
GREY |
23″ W x 23″L |
1812 |
| E65-0455 |
TJ1255 |
GREY |
6.5″H x 22.5″L |
500 |
Flow-Right Wall Inlets - Self Balancing Operation
| PART # |
MODEL # |
COLOUR |
R.S.O. |
CFM @ 750 F.P.M. |
| E65-0251 |
WI1000 |
WHITE |
14″H x 22 1/2″ L |
1200 |
| E65-1251 |
WI1000 |
BLACK |
14″H x 22 1/2″ L |
1200 |
| E65-0252 |
WI2000 |
WHITE |
14″H x 45 1/2″ L |
2300 |
| E65-1252 |
WI2000 |
BLACK |
14″H x 45 1/2″ L |
2300 |

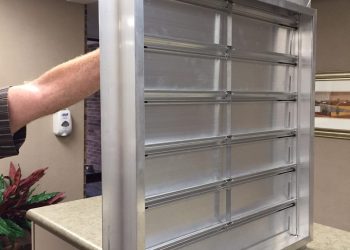

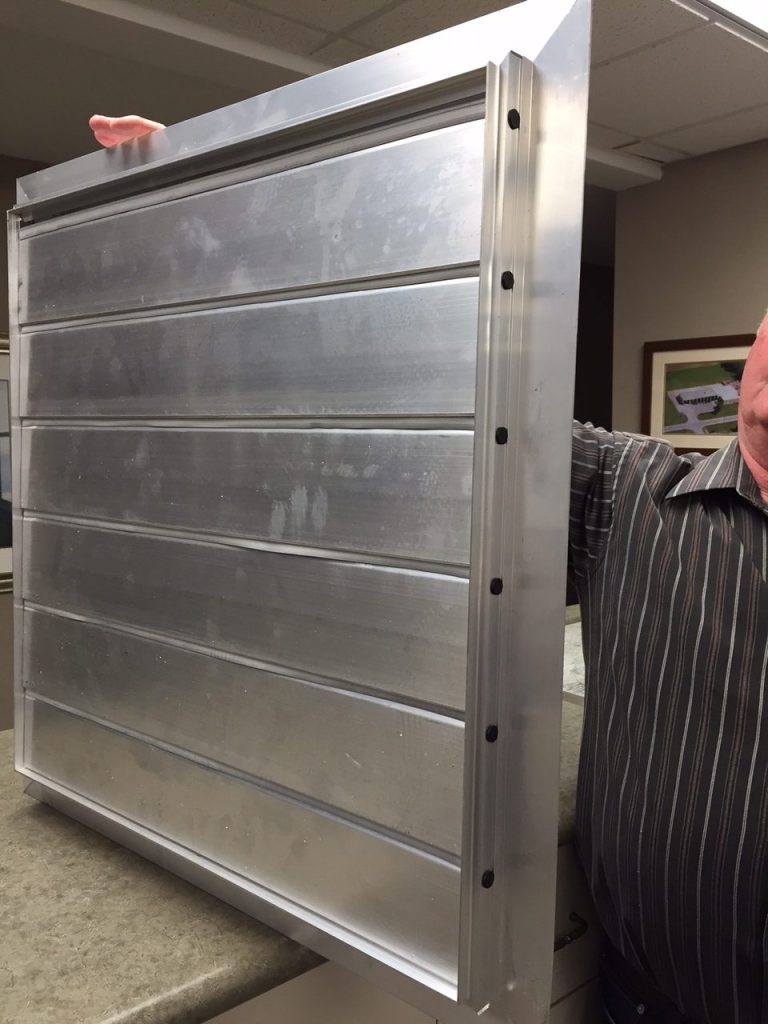

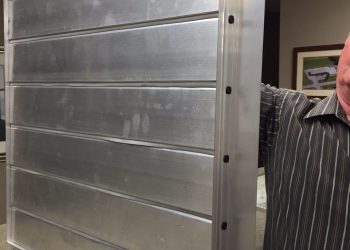

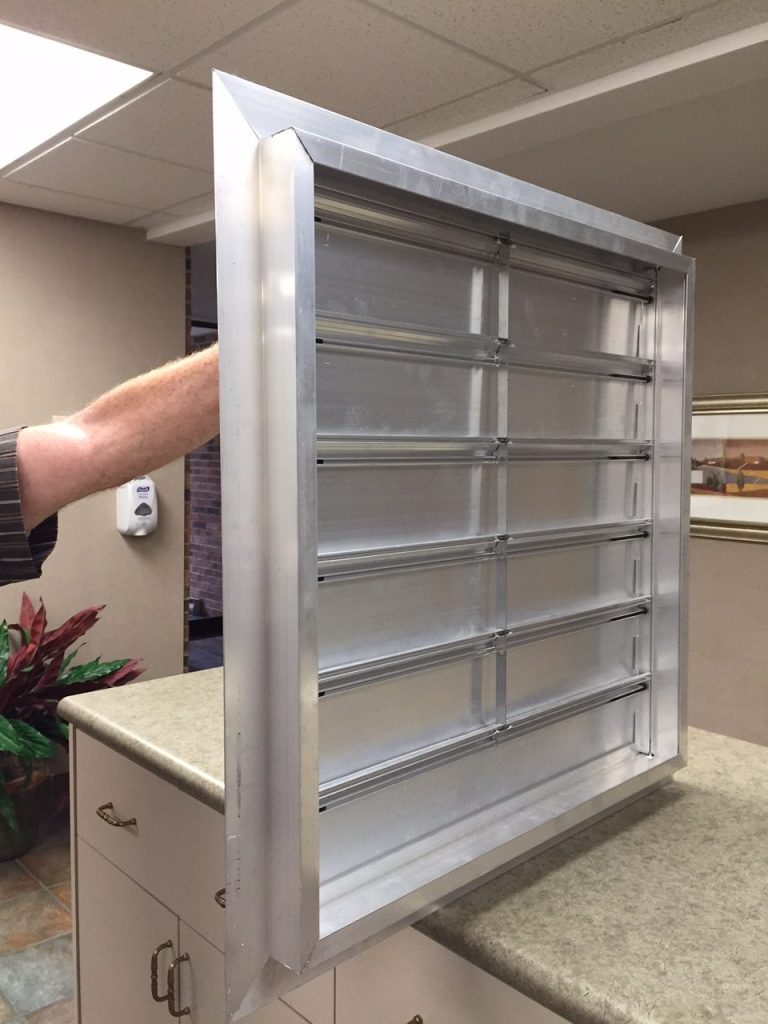

Motorized Aluminum Shutters with Screen
Designed to be used in either an exhaust or intake system (front flange).
| PART# |
MODEL # |
VOLT |
R.S.O. |
CFM @ 800 F.P.M. |
| E56-0016 |
16 |
115/230 |
16″ x 16″ |
1400 |
| E56-0024 |
24 |
115/230 |
24″ x 24″ |
3200 |
| E56-0030.50 |
30.5 |
115/230 |
30.5″ x 30.5″ |
6190 |
| FITS IN PLACE OF AF24E PVC SHUTTER FOR USE AS A POWERED LOUVRE. |
| E56-0036 |
36 |
115/230 |
36″ x 36″ |
7200 |
| E56-0048 |
*48 |
115/230 |
48″ x 48″ |
12800 |
| E56-0060 |
*60 |
115/230 |
60″ x 60″ |
20000 |
| E56-0091 |
|
115/230 VOLT MOTOR ONLY |
|
* INCLUDES 2 MOTOR PACKS
Non-Motorized Aluminum Shutters with Screen & Chain
| E56-3016 |
16″ x 16″ |
| E56-3024 |
24″ x 24″ |
| E56-3036 |
36″ x 36″ |
| E56-3048 |
48″ x 48″ |
Gravity Damper Only - No Screen or Chain
| E56-1016 |
16″ x 16″ |
| E56-1024 |
24″ x 24″ |
| E56-1036 |
36″ x 36″ |
| E56-1048 |
48″ x 48″ |
