Details for ABBIFAN 140-XXP-2

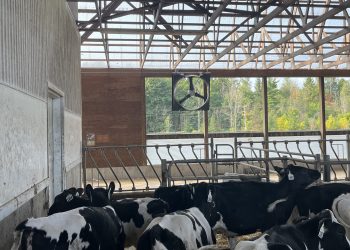

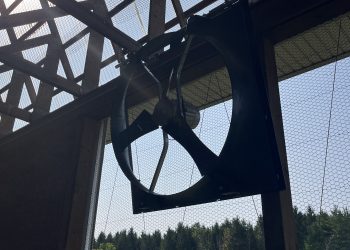

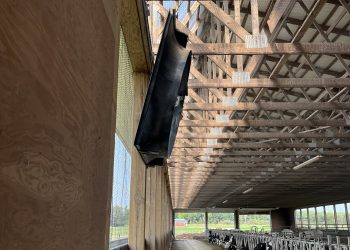

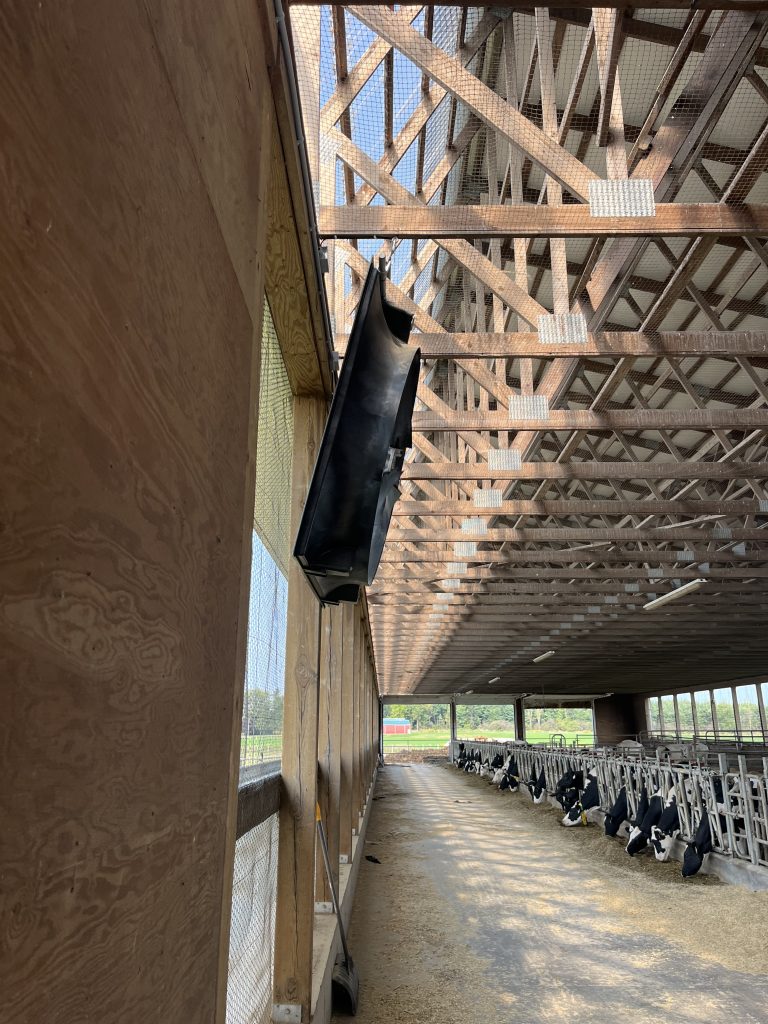

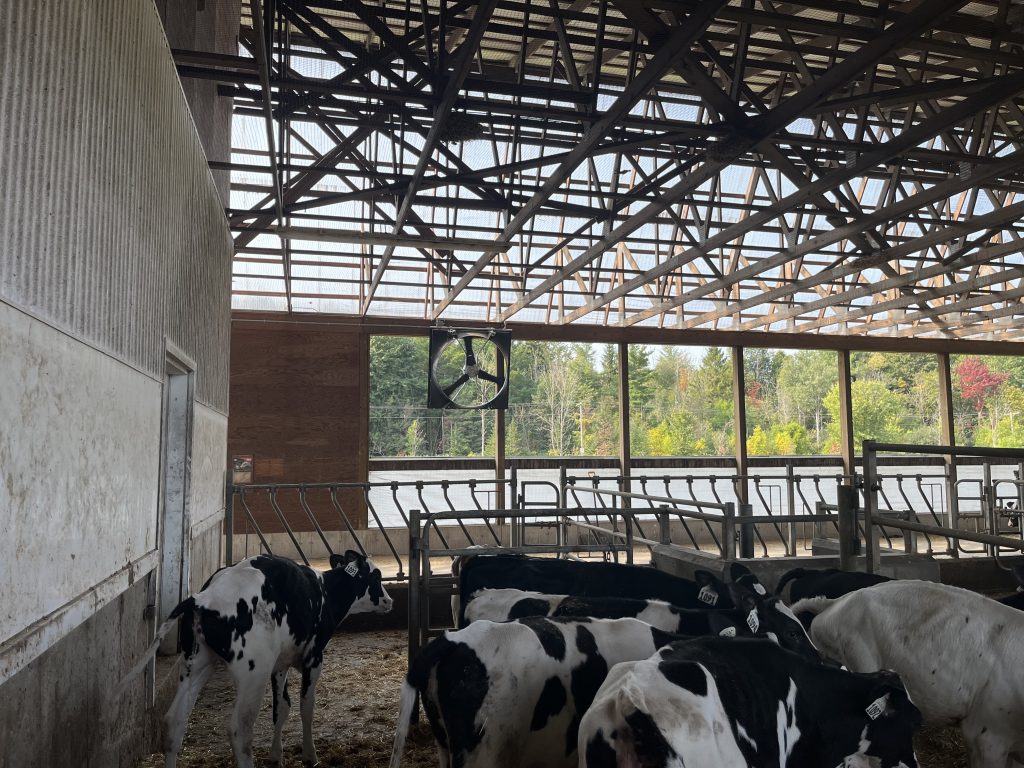

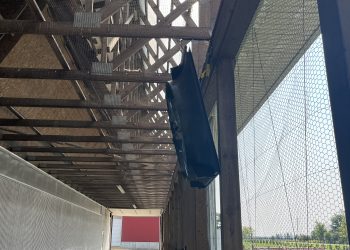

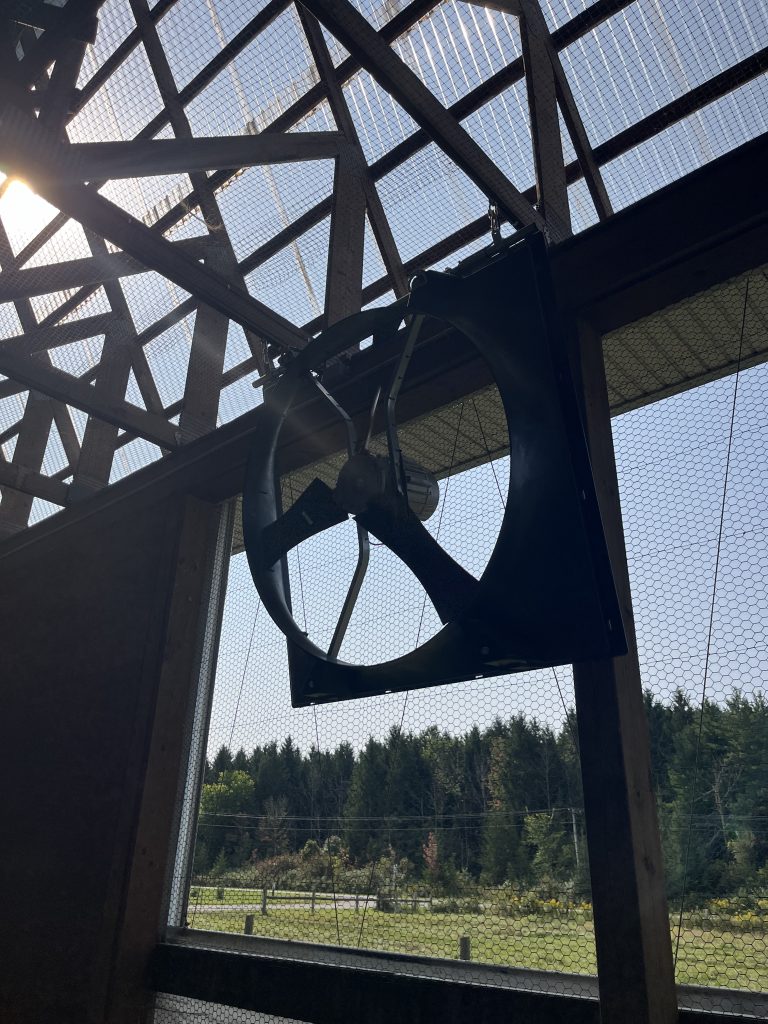

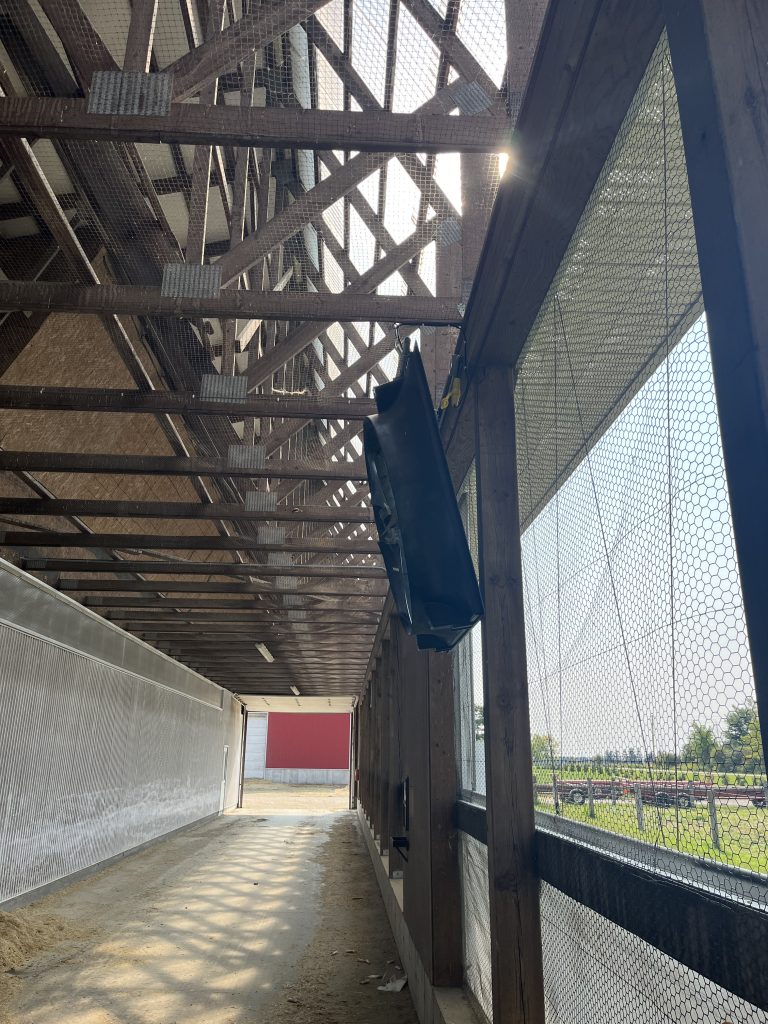

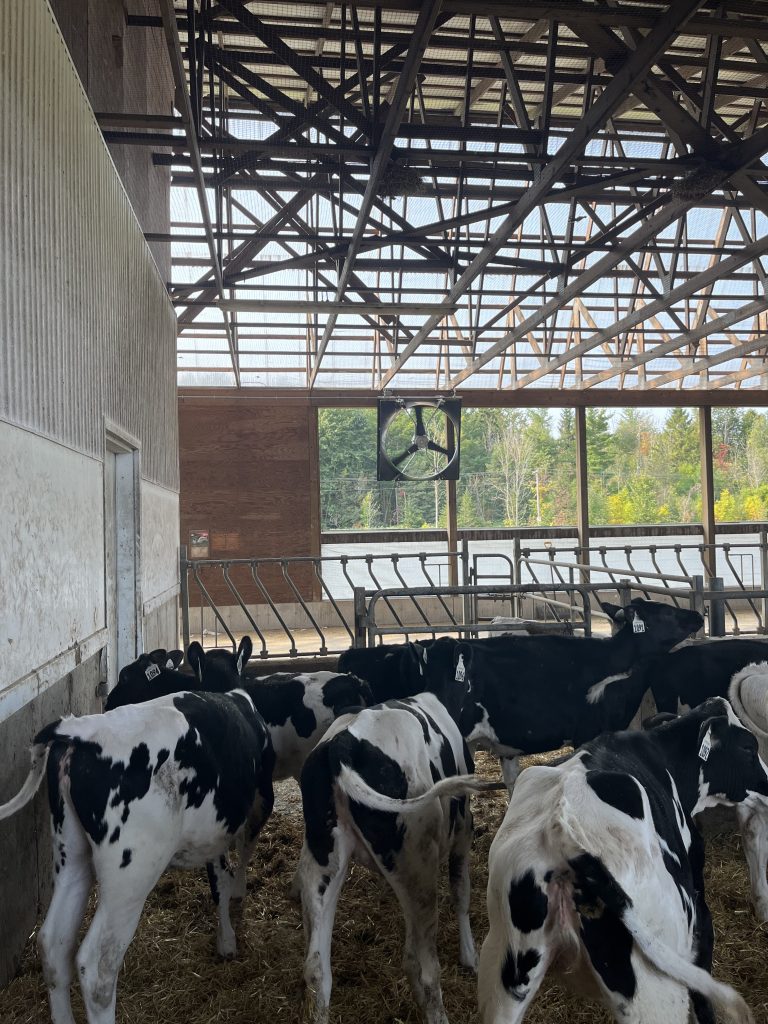

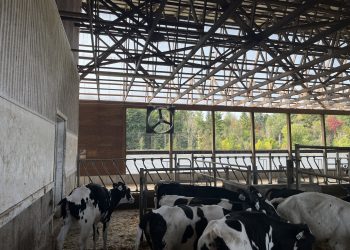

Abbi-Aerotech Abbifan 140-XXP-2 dairy fan

The energy-efficient ABBIFAN 140-XXP-2 fan is equipped with the latest motor technology: a direct drive Permanent Magnet motor with built-in electronics (EC). The propeller is fitted directly on the axis of the motor. This replaced the traditional belt drive, resulting in fewer wearable parts requiring less maintenance! The motor has a built-in converter in a separately protected section of the motor and 2 plug contact connections for fast and easy installation.

  • Cut Energy Costs: This fan offers extremely low power consumption with 0-10V capabilities, saving you money on energy bills.
  • Low Maintenance: The advanced permanent magnet EC (electronically commutated) motor design eliminates wearable parts, reducing the need for maintenance.
  • Simple Installation: Quick and easy setup with pre-configured cables and connectors.
  • Versatile Ventilation: Ideal for both longitudinal and cross ventilation, ensuring refreshing air and cooling by air velocity ensuring a better barn climate.  Air velocity also reduces relative humidity (autumn/winter).
  • Optional: evaporative cooling through misting.

ABBIFAN 140-XXP-2

DIA. MODEL PART # COLOUR VOLTS RPM MAX ENERGY*
49″ 140-XXP-2 E54-4455DD1 BLACK 230 512 530W

*MOTOR IS RATED 1200W WITH 530W BEING ACTUAL MAX ENERGY CONSUMPTION

OPTIONAL HANGING HARDWARE

PART # MODEL DESCRIPTION

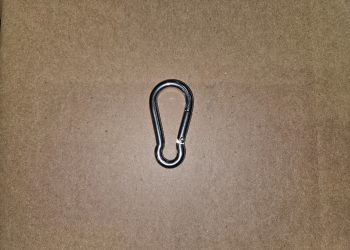

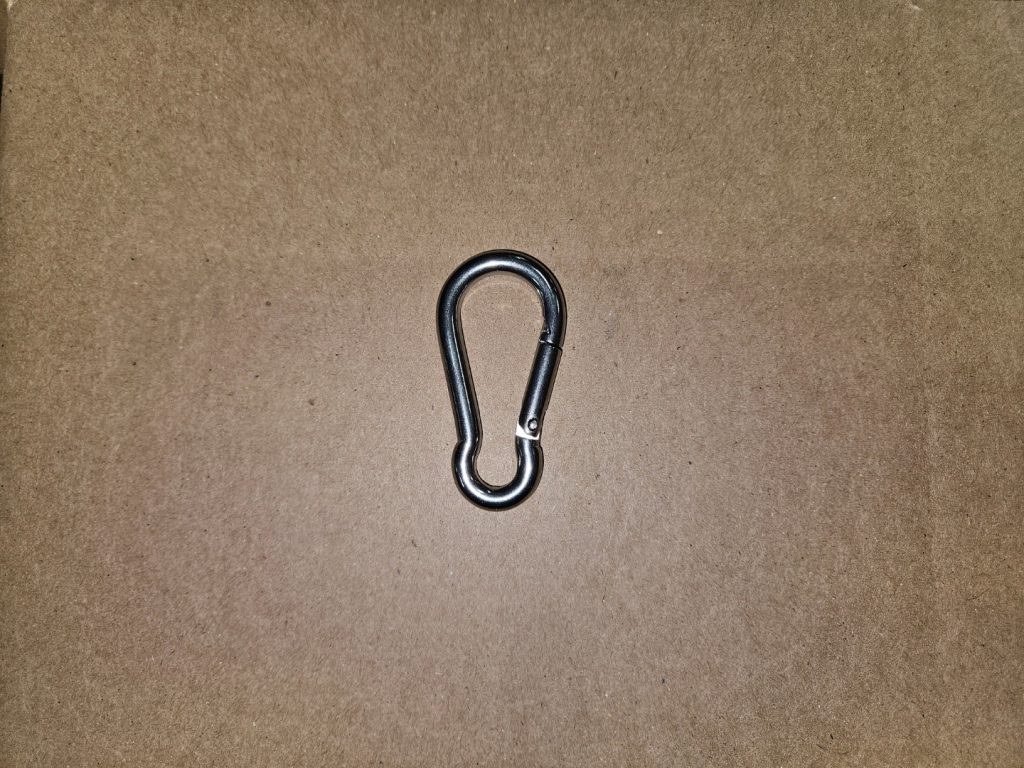

E54-4401 93542 CARBINE HOOK 70 X 7mm (2 PER FAN REQ’D)

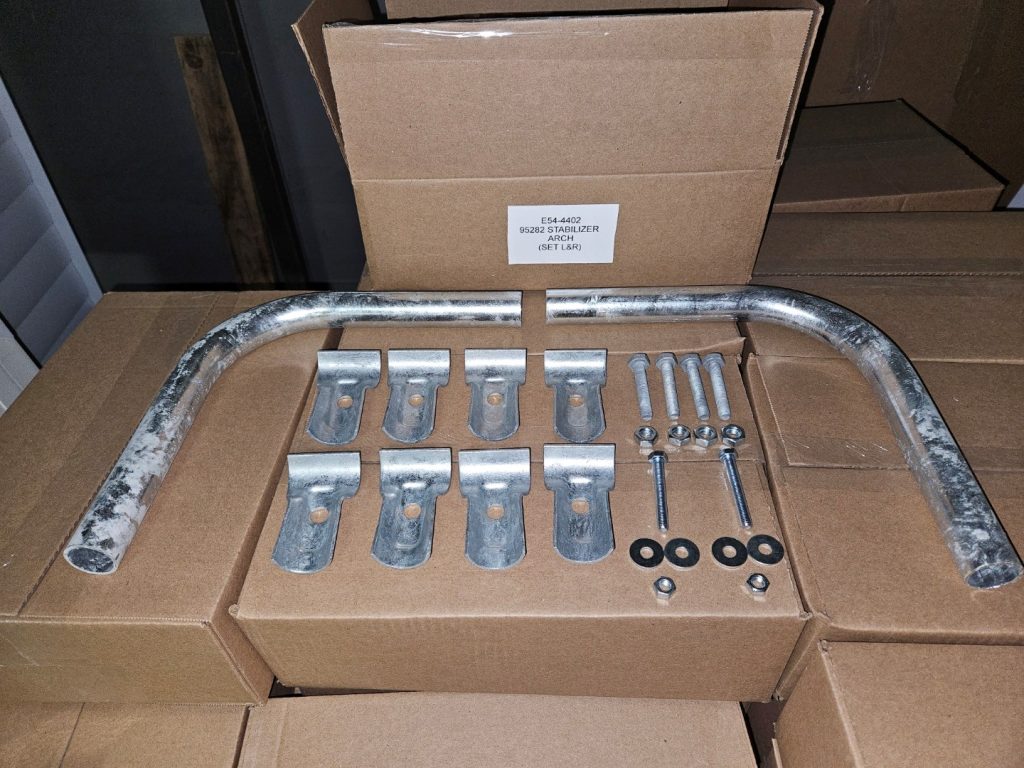

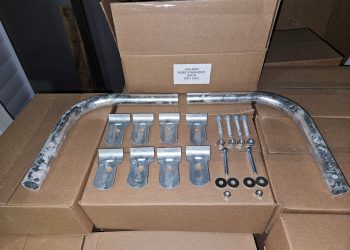

E54-4402 95282 STABILIZER ARCH (SET OF LH & RH)

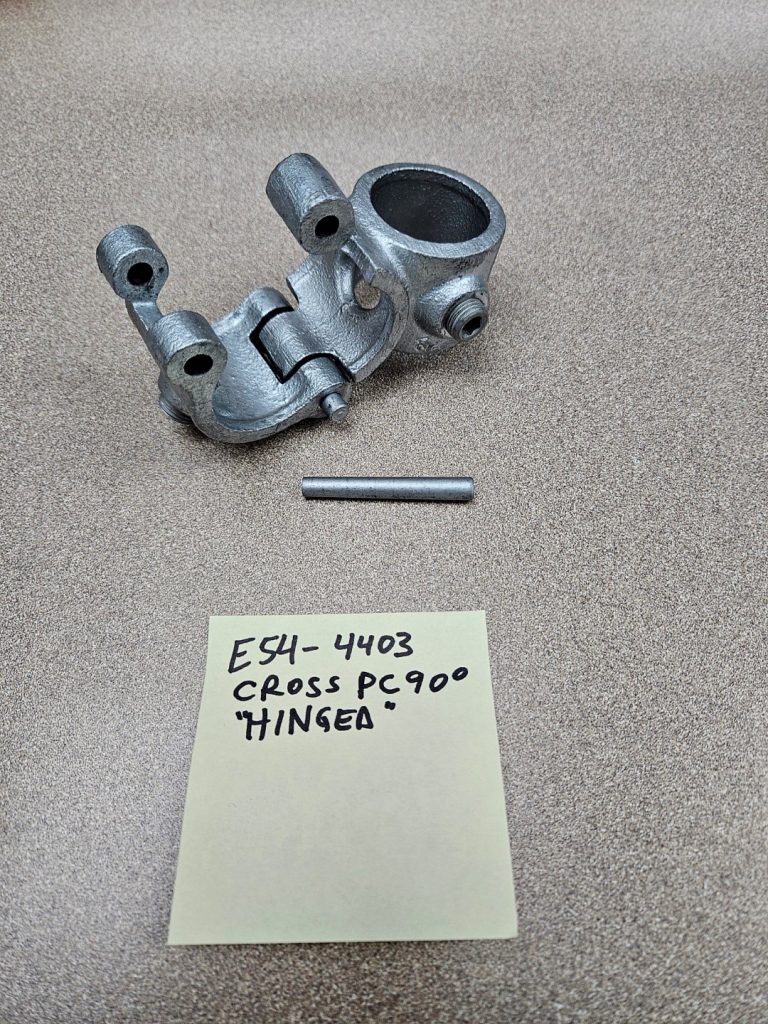

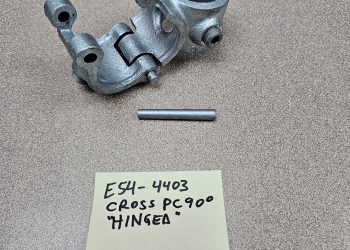

E54-4403 95359A CROSS PIECE 90° HINGED 33.7m (2 PER FAN REQ’D)

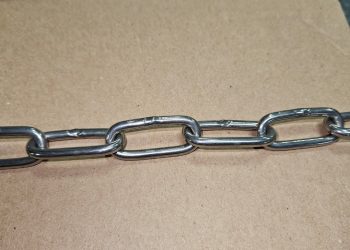

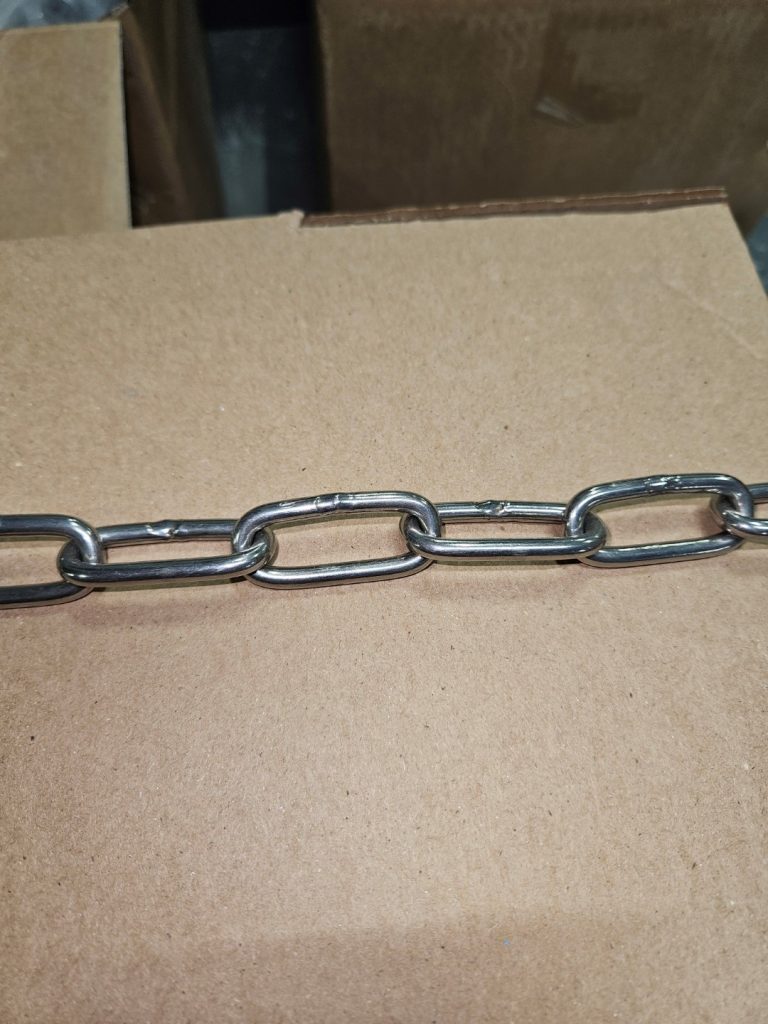

E54-4404 97002B ST.ST. SUSPENSION CHAIN 32 X 0.5m (.05m REQ’D PER FAN)
E54-4407 95516B DISCHARGE GUARD (FRONT)
E54-4408 95574 INTAKE GUARD (REAR)
E54-4409 95518 HARDWARE KIT TO FASTEN FRONT GUARD
